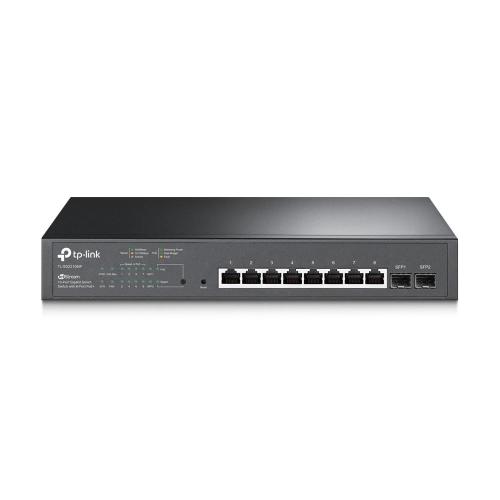

SWITCH 10P Gigabit TP-LINK SG2210MP con 8P PoE+ 2P SFP,802.3af SFP - Alim.150W PoE-Garanzia a vita

CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interfaccia:
• 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
• 2× 100/1000 Mbps SFP Slots
Media:
• 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
• 100BASE-FX: MMF, SMF
• 1000BASE-X: MMF, SMF
Numero ventole: 1
Physical security lock: Yes
Porte PoE+:
• Standard: 802.3at/af compliant
• PoE+ Ports: 8 Ports
• Power Supply: 150 W
Dimensioni ( L x P x A ): 294 x 180 x 44 mm
Tipo di montaggio: Rackmount/Desktop
Max Power Consumption:
• 12.2 W (110 V / 60 Hz with no PD connected)
• 173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation:
• 41.63 BTU/h (with no PD connected)
• 539.35 BTU/h (with 150 W PD connected)

PRESTAZIONI
Capacità di switching: 20 Gbps
Packet Forwarding Rate: 14.9 Mpps
Tabella ARP: 8K
Buffer (pacchetti): 4.1 Mbit
Jumbo frame: 9 KB

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Management Features:
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• TL-SG2210MP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente:
• Operating Temperature: 0–50 ℃ (32–122 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
