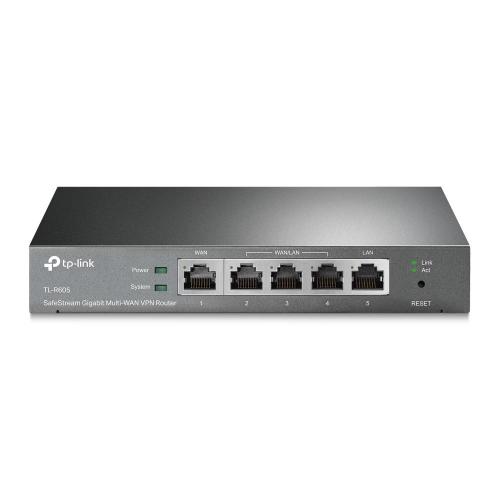

ROUTER Gibabit VPN TP-LINK ER605 Multi-WAN 1P Giga WAN+3P Giga WAN/LAN,1P Giga LAN,20IPsec VPN Tunnels Fino:30/06

CARATTERISTICHE HARDWARE
Standard e protocolli:
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interfaccia:
• 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡)
Media:
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Tasto: Reset Button
Alimentazione: External 12V/1A DC Adapter
Flash: 128 MB NAND
DRAM: 256 MB DDR
LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensioni ( L x P x A ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Max Power Consumption: 7.94 W
VERSIONE: v 2.0

PRESTAZIONI
Sessioni concorrenti: 150,000
New Sessions /Second: 2,600
NAT (Static IP):
• Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 Mbps
NAT(DHCP):
• Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 Mbps
NAT(PPPoE):
• Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 Mbps
NAT (L2TP):
• Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 Mbps
NAT (PPTP):
• Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps
64 Byte Packet Forwarding Rate:
• Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 pps
Throughput VPN IPsec:
• ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 Mbps
OpenVPN: 21.70 Mbps
L2TP VPN Throughput:
• Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps
PPTP VPN Throughput:
• Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps

FUNZIONI DI BASE
Tipo connessione WAN:
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port‡
MAC clone: Modify WAN/LAN MAC Address†
DHCP:
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP
• Multi-IP Interfaces
IPv6: StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

FUNZIONALITA' AVANZATE
ACL: IP/Port/Protocol/Domain Name Filtering
Routing avanzato:
• Static Routing
• Policy Routing
Bandwidth control: IP-based Bandwidth Control
Load balance:
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT:
• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Sicurezza:
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session Limit: IP-based Session Limit

VPN
VPN IPsec:
• 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
VPN PPTP:
• PPTP VPN Server
• 10 PPTP VPN Clients
• 16 Tunnels
• PPTP with MPPE Encryption
VPN L2TP:
• L2TP VPN Server
• 10 L2TP VPN Clients
• 16 Tunnels
• L2TP over IPSec
OpenVPN:
• OpenVPN Server
• 10 OpenVPN Clientsâ–³
• 16 OpenVPN Tunnels

SICUREZZA
Filtering:
- WEB Group Filtering
- URL Filtering
- Web Security
ARP inspection:
• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Attack defence:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
Access Control: Source/Destination IP Based Access Control

AUTHENTICATION
Web Authentication:
• No Authentication
• Simple Password
• Hotspot（Local User / Voucher / SMS / Radius）
• External Radius Sever
• External Portal Sever
• Facebook

GESTIONE
Omada App: Yes
Centralized Management:
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Servizio: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Manutenzione:
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Syslog Support
Management Features:
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
• Gigabit VPN Router ER605
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
Requisiti di sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
