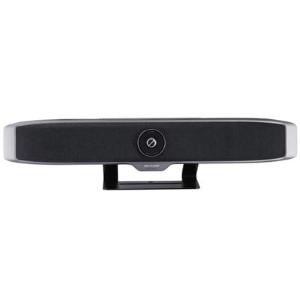

Telecamera per videoconferenza HIKVISION IDS-UVC-X28-B 4K grandangolo 120° 8 micr. e altoparl.HD integ.

Product Type
Product Form: Highly-integrated
Product Characteristics: Wired USB camera, wireless mirroring

Communication Protocol
Video Codec Protocol: MJPEG, H264
Audio Codec Protocol: PCM 16 bit depth 48 kHz, AAC-LC 16 bit depth 48 kHz
Other Communication Protocols: UAC, UVC
WI-FI Standard: Supports 2.4 G and 5 G dual-band connection
Bluetooth: Supports 5.0 (only for the remote control)

Video Characteristic
Video Input Resolution Capability:
- 1 × HDMI IN, Max. 4K@30，
- 1 × Wireless Screen Mirroring, Max. 4K@30，
- 1 × Wireless Camera, Max. 1080P@30
Video Output Resolution Capability:
- 2 × HDMI OUT, Max. 4K@60,
- 1 × USB-C (UVC MJPEG), Max. 1080P@30

Audio Characteristic
Audio Algorithm: Audio Array Algorithm, Self-Adaption Audio Algorithm, Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC)
AGC, Automatic Gain Control: Supported
ANS, Automatic Noise Suppression: Supported
AEC, Acoustic Echo Cancel: Supported
Intelligent Noise Reduction: Supported

Camera
Camera Type: Built-In
Privacy Mask: Electronic Privacy Cover
Sensor: 1/2.8 inch, CMOS, Effective Pixel 8 Million
Max Resolution: 4K@30 (3840 × 2160)
Aperture: f/2.5
Focus Distance: 2.02 mm
Backlight Compensation: Supported
Horizontal Field Angle: 109.9°
Vertical Field Angle: 74.6°
Field Angle: 118.8°
Digital Magnification: 3x e-PTZ Electronic Head
Automatic Gain: Supported
Automatic Exposure: Supported
Preset Point: Supported, 5 Presets; Supports Active Call, Update, Clear
DNR: 2D & 3D
White Balance: Supported, Automatic
Other: supports to adjust image parameters, brightness, contrast, saturation, sharpness, gain. Supports a variety of view modes: Manual Mode, Smart View, Smart Tracking, Smart Gallery

Microphone
Microphone type: Built-In
Polar Pattern: Omni-Directional
Pickup Range: 6 m
Array Amount: 8
Frequency Response Range: 100-20 kHz
Sensitivity: -38 db
Signal-to-noise Ratio: 65 db
Sampling Rate: 48 kHz

Loudspeaker
Rated Power: 10 W
Sensitivity: 78 dB ± 3 dB
Size: 78 mm × 183.4 mm × 50 mm
Electrical Impedance: 8 ± 1.2 Ω
F0, Lowest Frequency Response Point: 240 Hz

AI
Speaker Follow: Supported
Intelligent Framing: Supported
Smart Window: Supported
Electronic Nameplate: Supported

USB
Supported Operating System: Supports Windows 7/10/11, and Mac OS
Video System: MJPEG (1080P@30 (1920x1080), 720P@30 (1280x720), 540P@30 (960x540), 360P@30 (640x360), 270P@30 (480x270)）
USB Audio: PCM 16 bit depth 48 kHz
USB Video Communication Protocol: UAC, UVC

Maintenance Function
Maintenance Mode: Supported. Managed by remote control.
Maintenance Function
Supports device configuration, and upgrade via multiple methods (USB flash drive / cloud service online detection)

Interface
Video Input:
- 1 × Built-in camera,
- 1 × HDMI IN
Video Output: 2 × HDMI OUT
Audio Input: 1 × 3.5 mm LINE IN
Audio Output: 1 × 3.5 mm LINE OUT
Network Interface: 1 × 10/100/1000 Mbps Self-Adaption Network
USB:
- 1 × USB3.0 Type-C,
- 2 × USB2.0 Type-A
Power Interface: DCJack, Φ2.0m
Bluetooth:
- 1 × 2.4G Remote Control Bluetooth,
- 1 × 2.4G Audio Bluetooth
Wi-Fi: 1 × 2.4 G & 5 G
Other Interface: 1 × MIC (POE power supply, reserved interface)

General
Installation: Screws + Buckles
Weigh(Product): 2.49 kg
Weight(With Packing): ≈ 5.360 kg
Dimension (Product): 616 × 145 × 104.23 mm
Dimension(With Packaging): 727 × 227 × 213 mm
Power Waste: 24 W
Input Voltage: DC 12V
Input Current: 2A
Operating Temperature: 0 to 40 ℃
Operating Humidity: 10%RH to 80%RH
Tripod Connecting Hole: 1 × 1/4-20” Screw Hole
Heat Dissipation: No heat dissipation holes. Internal aluminum block for heat dissipation.
Packing List: 1 × Remote Control, 2 × Battery, 1 × AC Powerline, 1 × Power Adapter (with European/German plug adapter), 1 × Wall-Mounted Bracket, 1 × NFC Sticker, 1 × Expansion Screw, 1 × Quick Start Guide, 1 × Regulation Compliance and Safety Information, 1 × Thank You Card, 1 × 5 m USB 3.0 Cable (USB-C to USB-A)

Certification Standard
Certification Certificate: CB/CE, Certification of Transport
