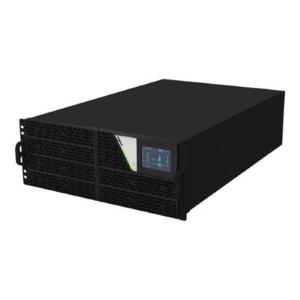

UPS LEGRAND LG-311348 KEOR DK 5000VA ONLINE DOPPIA CONVERSIONE VFI Fino:31/12

Entrance voltage
176-280 V

Primary Frequency
45-65 Hz

Number of primary phases
1

Output voltage
200-240 V

Secondary Frequency
50-60 Hz

Effective output power
5000 W

Apparent output power
5000 VA

Energy consumption
101 W

USB Interface
Yes

With RS-232 communication interface
Yes

Number of secondary phases
1

SNMP
Yes

Type of tension
AC

Height
176 mm

Width
440 mm

Depth
700 mm

Weight
54 kg

Possibility of network management
Yes

Technology USV
Online

Modular
No

Max. voltage distortion at the output (linear charge)
2%

Cos phi power factor at output
1

Total efficiency
95.1%

Efficiency in eco mode
99%

Off-voltage switching contact
Yes

Automatic Cutting Function
Yes

Connection of entry
Fixed connection

Number of output connections cold devices C13
8

Number of output connections cold devices C19
2

Number of fixed connection output connections
1

Protection class (IP)
IP20

Temperature of use / installation
0-40 °C

Temperature of storage
-10-50 °C

Power current
27.5-27.5 A

Sound level
45 dB

Indication of identification of connection terminals
Yes

Type of charge
Universal

With grip
No

Compliant with Battery or Battery Regulations
Yes

IEC Code (Pack1)
VRLA

Battery or Accumulator (Pack1)
Accumulator (rechargeable)

Number of Packs 1
1

Number of Unit elements (Pack1)
20

Location Pack1
The product incorporates a battery

Regulatory Type (Pack1)
I : Industrial (Not Portable)
