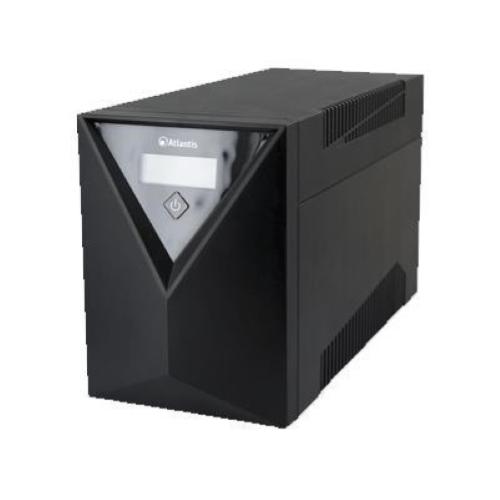

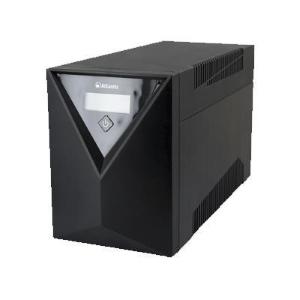

UPS ATLANTIS A03-S1501 1500VA/900W LineInteractive UPS Stabilizzatore+Filtri Sw shutdown PC viaUSB -Garanzia 2 anni- Fino:23/05

Power Rating (VA)
1500

Power Rating (W)
900

Input
Voltage: 160-290V
Frequency: 50Hz±5%

Output
Voltage: 190-245 [AC/AVR] / 220V(±7%) [Battery]
Frequency: 50Hz (±1%)
AVR: Built-in
Waveform: Simulated SineWave

Transfer Line/Battery
Less than 4ms (typical)

Efficiency Battery
Total Efficiency Over 80%
Voltage: 24VDC
Capacity: 12V/9.0A
Quantity: 2
Recharge Time: 6-8 hours to (90%)
Type: Sealed Maintenance Free Lead Acid VRLA Type


Indicators
LCD: Utility Normal, Backup, Battery Load, Battery Voltage, Input Voltage, Output Voltage, Load, AVR and Battery/Fault conditions


Protection
- Overload AC Buzzer continuously alarms
- Overload Inverter Buzzer continuously alarms
- Short Circuit INV Input Fuse & Electric Circuit
- Short Circuit AC Electric Circuit
- Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
- Spike Suppression: Meets EN61000-4-5
- Noise Suppression: Meets EN50991-1


Connections
Output: 4 x IEC + 1 Schuko (Battery Power Supplied)
Computer: USB (USB Cable isnt’t included)


Backup Time
10 to 30 mins for typical PC Load


Mechanical
Dimensions (WxHxD): 148 x 198 x 315 mm
Net Weight (with Battery): 11.5 Kg

Environments
Temperature: 0-40° C
Humidity: 0-95% (non-condensing)

Certification
CE
