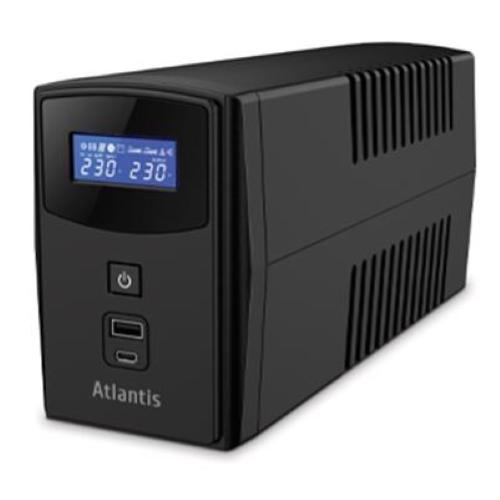

UPS ATLANTIS A03-S1000P 1000VA/600W OnePower-Tecn.Stepwave Line interactive - V-Out200-243Vac.Batt.(12V 9A/h) 2 schuk Fino:23/05

Power Rating (VA)
Maximum Instantaneous Peak: 1000
Standard: 1000

Power Rating (W)
Max: 600
Standard: 600

Input
Voltage: 162-290V
Frequency: 50Hz±5%

Output
Voltage: 191-253 [AC/AVR] / 230V(±10%) [Battery]
Frequency: 50Hz (±1%)
AVR: Built-in
Waveform: Simulated SineWave

Transfer Line/Battery
4 ms (typical)

Efficiency
Normal: 94%
Boost: 91%
Buck: 92%

Battery
Voltage: 12VDC
Capacity: 12V/9.0Ah
Quantity: 1
Recharge Time: 6-8 hours to (90%)
Type: Sealed Maintenance Free Lead Acid VRLA Type

Indicators (LCD)
Utility Normal, Backup, Battery Load, Battery Voltage, Input Voltage, Output Voltage, Load, AVR  and Battery/Fault conditions

Protection
Overload AC (Beep twice a second)
Overload Inverter (Beep twice a second)
Short Circuit INV Input Fuse & Electric Circuit
Short Circuit AC Electric Circuit
Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
Spike Suppression
Noise Suppression

Connections
Rear: Output 2xSchuko (Battery Power Supplied) | Computer USB
Front: 2xUSB charging Port (Type A / Type C) max 2,4A combined (12,0W)

Backup Time
10 to 30 mins for typical PC Load

Dimensions (WxHxD)
96 x 138 x 286 mm

Net Weight
5,1 Kg (with Battery)

Temperature
0°-40° C

Humidity
0-95% (non-condensing)
