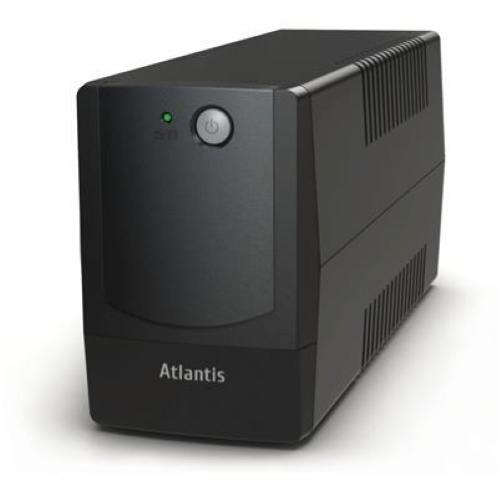

UPS ATLANTIS A03-PX800 800VA/400W LineInteractive UPS AVR HotSwap Battery Stabiliz.-Gar. 2 anni

Power Rating(VA) 800
Power Rating(W) 400

• Voltage: 162-268V
• Frequency: 50Hz±5%
• Voltage: 220V(±10%) [AC] / 220V(±10%) [INV]
• Frequency: 50Hz (±1%)
• Waveform: Simulated SineWave
Less than 2-6 ms (typical)
Total Efficiency Over 80%
• Voltage 12VDC
• Capacity 12V/7.2Ah
• Quantity 1
• Recharge Time 4 hours to (90%)
• Type Sealed Maintenance Free
Lead Acid VRLA Type
AC Mode (Green lighting)
Battery mode (Green flashing every 10 seconds)
Low Battery (Green flashing every seconds and)
• Overload AC Buzzer sound every 0.5 seconds then UPS
shuts down after 10 seconds (>110%)
• Overload Inverter UPS shuts down after 10 seconds (>110%)
• Short Circuit INV Input Fuse & Electric Circuit
• Short Circuit AC Electric Circuit
• Battery Over-drain Two stages: Controlled Battery
Low Warning & Cut Off
• Spike Suppression Meets EN61000-4-5
• Noise Suppression Meets EN50991-1
• Battery Mode (sound every 10 seconds)
• Low Battery (sound every seconds)
• OverLoad (sound every 0.5 seconds)
• Fault (continuously sounding)
Output 4 xIEC (Battery Power Supplied)
10 to 30 mins for typical PC Load
101 x 142 x 280 mm
4.4 Kg (with Battery)
• Temperature 0°-40° C
• Humidity 0-95% (non-condensing
