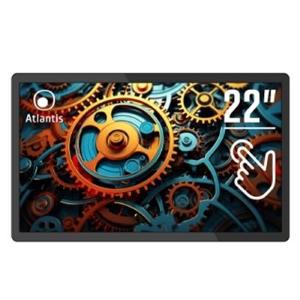

MONITOR Open Frame TOUCH ATLANTIS Multimediale 22" A05-D22W1 10 tocchi Full HD, DP/HDMI/VGA, Audio IN/OUT. Alimentatore est.

DISPLAY
Display Size: 21.51'' / 54,6cm
Panel / Front Face: 79,27%
Back Light: LED
Resolution (HxV): 1920x1080
Aspect Ratio: 16:9
Pixel Pitch: 0.0247 (H) x 0.0248 (V) mm
Brightness: 259cd/m² (Typ.) Typ / 222cd/m² (Typ.) Min
Contrast Ratio: 1200:1 (Typ.) / 10.000.000:1 (DCR)
Response Time (Typical): 8 ms (GTG) / 5ms (OD)
Display Colors: 16.7M (8bit)
View Angles (CR>10): 178°(H) / 178°(V)
Surface Hardness: ≥ 7H
Glass Thickness: 3 mm

TOUCH
Touch Type: Projected Capacitive Type
Number of Touch Point: 10 Points
OS Support: Windows 7/8/10/11 and Linux
Touch Input: USB (type B USB2.0)

PC INPUT RANGE
Horizontal Freq.: 50 ~ 75 KHz
Vertical Freq.: up to 75 Hz
Max. Display Frequency: 1920x1080@60Hz

INTERFACE
VGA: 1
HDMI: 1
DP: 1
Audio Line In (Green): 1
Earphone Out (Black): 1
Speaker: 2x2W

CONTROLS
Key: 5 power key and four navigation keys
OSD Language: Multiple language
Color Mode: User, sRGB,Warm, Normal, Cool
Free Sync: YES
OverDrive: YES

PHYSICAL
Power Range: AC 100-240V, 50-60Hz, 1.5A
Consumption: On (Typical): 15W / Standby<=0.26W / Off<=0.23W
Power Indicator: Power on: Green / Power Saving: Red / Power Off: Off
Product Dimension (WxHxD): 520 x 311,6 x 42,5 mm
Net Weight: 4.88 Kg
IP Level Protecion (Front): IP65
VESA Mounting: 100×100mm (4 holes)

ACCESSORY
Power Cable: 1.5m × 1
Power Adapter: (FJ-SW20261203000) 12V@3A=36W
HDMI Cable: 1.5m × 1
USB Cable: 1.8m × 1

OPERATING CONDITION
Temperature: 15°C ~ 50°C
Humidity: 20% ~ 85%, non-condensing
24 Hours / 7 Days: YES
