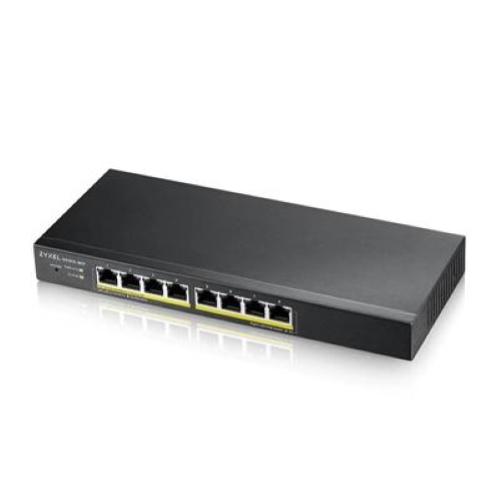

SWITCH ZYXEL GS1915-8EP-EU0101F 8P Gigabit PoE-NebulaFlex - (erog.PoE fino 60W)-Supp.IPv6,VLAN - Design senza ventole, Desktop

Models
Product name: 8-port GbE Smart Managed PoE Switch

Port Density
Total port count: 8
100/1000 Mbps: 8

PoE
802.3at PoE ports: 8
Total PoE budget (Watts): 60

Performance
Switching capacity (Gbps): 16
Forwarding rate (Mpps): 11.9
Packet buffer (byte): 525 K
MAC address table: 8 K
Jumbo frame (byte): 9 K

Power
Input: 100 - 240 V AC, 50/60 Hz
Max. power consumption (watt): 72

Physical Specifications
Item: Dimensions (WxDxH): 250 x 104 x 27 mm
Weight: 0.62 kg
Included accessories: Power cord, Power adapter, Wall mount kit

Environmental Specifications
Operating:
- Temperature 0°C to 40°C/32°F to 104°F
- Humidity 10% to 95% (non-condensing)
Storage:
- Temperature -40°C to 70°C/-40°F to 158°F
- Humidity 10% to 95% (non-condensing)
MTBF (hr): 1,641,000
Heat dissipation (BTU/hr): 245.52
Acoustic noise @ 25°C (dBA): 0

Standard Compliance
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3x flow control
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
- IEEE 802.3az EEE support/Green Ethernet
- IEEE 802.1p CoS support

Resilience and Availability
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.3ad LACP (max # trunks/links per trunk): 4 groups/8 links per group
- Loop guard
- Dual configuration files
- Dual images

Traffic Control
- 802.1Q Static VLANs: 256
- Port-based VLAN
- Voice VLAN
- MAC-based VLAN
- Vendor ID based VLAN
- VLAN Trunking
- LACP algorithm of source/destination IP

Security
- Layer 2 MAC filtering
- Static MAC forwarding
- SSH v2
- SSL
- Port isolation
- Port security
- MAC freeze
- CPU protection
- SHA2 HTTPS Certification
- Login authentication by RADIUS
- RADIUS accounting
- Authorization on RADIUS
- Multiple RADIUS servers
- DHCP Snooping

Quality of Service (QoS)
- 802.1p queuing methods: SPQ, WRR, WFQ
- Storm control: broadcast, multicast, unknown unicast (DLF)
- Port-based rate limiting (ingress/ egress)
- 802.3x flow control
- 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
- DiffServ (DSCP)

Layer 2 Multicast
- L2 Multicast
- Static L2 Multicast Forwarding
- IGMP snooping (v1, v2, v3)

Manageability
- SNMP v1, v2c, v3
- SNMP trap group
- RMON (1, 2, 3, 9)
- ICMP echo/echo reply
- Syslog
- Display port utilization
- IEEE 802.1AB LLDP
- IEEE 802.1AB LLDP-MED
- Custom default
- Support NebulaFlex for Cloud Management

IPv6 Management
- IPv6 over Ethernet (RFC 2464)
- IPv6 addressing architecture (RFC 4291)
- Dual stack (RFC4213)
- ICMPv6 (RFC4884)
- Path MTU (RFC 1981)
- Minimum Path MTU size of 1280 (RFC 5905)
- Encapsulation for maximum PMTU size of 1500
- Neighbor Discovery (RFC4861)

Device Management
- Standalone management by Web interface
- Cloud management by Nebula Control Center
- Setup Wizard
- Management through Web, SNMP
- Remote firmware upgrade by FTP/Web
- Configuration saving and retrieving
- DHCP client
- DHCP relay per VLAN
- Daylight saving
- NTP (IPv4/IPv6)
- Port mirroring
- Schedule PoE
- PoE default consumption mode

MIB
- Zyxel private common MIB
- RFC 1066 TCP/IP-based MIB
- RFC 1213, 1157 SNMPv2c/v3 MIB
- RFC 1493 bridge MIB
- RFC 1643 Ethernet MIB
- RFC 1757 RMON group 1, 2, 3, 9
- RFC 2011, 2012, 2013 SNMPv2 MIB
- RFC 2233 SMIv2 MIB
- RFC 2358 Ethernet-like MIB
- RFC 2674 bridge MIB extension
- RFC 2819, 2925 Remote Management MIB
- RFC 3621 Power Ethernet MIB
- RFC 4293 Management Information Base (MIB) for IP
- RFC 4292 IP forwarding table MIB
- RFC 4022 management information base for transmission control protocol
- RFC 4113 management information base for user datagram protocol

Zyxel One Network
ZON Utility:
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
- IP configuration
- IP renew
- Device factory reset
- Device reboot
- Device locating
- Web GUI access
- Password configuration
- One-click quick association with Zyxel AP Configurator (ZAC)
Automatic detection of the latest firmware
Displays device serial number and hardware version
Cloud mode on/off option for Hybrid series devices

Smart Connect:
Discover neighboring devices
One-click remote management access to the neighboring Zyxel devices
Reset neighboring devices remotely to factory defaults
Power cycle neighboring powered devices (PoE switches only)

Certifications
EMC:
- CE, FCC, RCM, Class A
- BSMI CNS 13438
Safety:
- LVD LVD EN 62368-1
- BSMI CNS 14336-1
RoHS

Limited life-time warranty
- Warranty terms, service availability, and service response times may vary from country or region to country or region.
