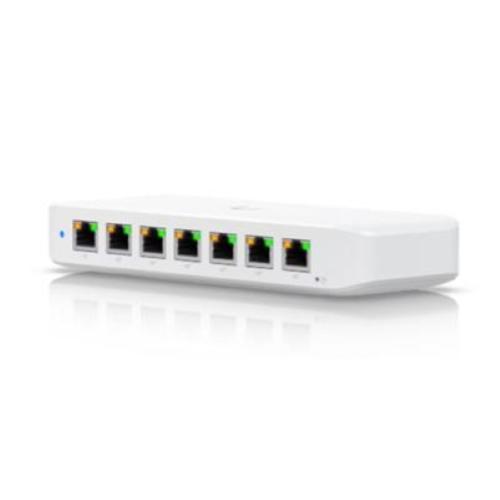

SWITCH UNIFI 8P POE UBIQUITI USW-ULTRA L2 COMPATTO 7P GBE POE+ 1P GBE - 42W/16W POE (alim.non incl.)

Overview
Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3'')
Port Layout:
- 1 GbE RJ45
- 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Max. PoE Output: Up to PoE+
Total PoE Availability:
- PoE++ input: 42W
- PoE+ input: 16W
- 60W PoE adapter input: 42W
- 60W AC adapter input: 52W
- 210W AC adapter input: 202W
Form Factor: Compact desktop, wall, magnetic

Performance
Switching Capacity: 16 Gbps
Total Non-Blocking Throughput: 8 Gbps
Forwarding Rate: 12 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000

Layer 2 Features
STP & RSTP: âœ"
Egress Rate Limit: âœ"
Flow Control: âœ"
Storm Control: âœ"
Multicast & Broadcast Rate Limiting: âœ"
Port Isolation: âœ"
Port Mirroring: âœ"
Jumbo Frames: âœ"
Loop Protection: âœ"

Hardware
PoE Ports:
- PoE+: 7
- PoE++: 1
Max. PoE Wattage per Port by PSE:
PoE+: 30W
Max. Power Consumption:
- 9W (Excluding PoE Output) with PoE input
- 8W (Excluding PoE Output) with adapter input
- 210W (Including PoE Output) with 210W AC adapter input
Power Method:
- (1) AC/DC adapter (Excluded)
- (1) PoE++
Power Input Method:
- DC Input
-PoE
Supported Voltage Range: 50—57V DC/PoE
Management: Ethernet
Heat Dissipation: 15 BTU/hr (Excluding PoE Output)
Weight:
- Device: 320 g (11.3 oz)
- Wall mount: 45 g (1.6 oz)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Ambient Operating Temperature:
- PoE++ input: -30 to 60° C (-22 to 140° F)
- 60W AC adapter input: -20 to 45° C (-4 to 113° F)
- 210W AC adapter input: -20 to 60° C (-4 to 140° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: âœ"
Certifications: CE, FCC, IC, Anatel: 06367-24-08356

Software
Application Requirements: UniFi Network
Version 8.0.28 and later
