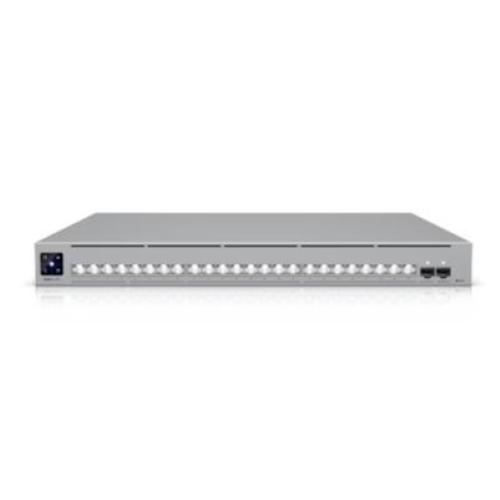

SWITCH UNIFI 24P UBIQUITI USW-PRO-XG-24-EU L3 ETHERLIGHTING 16P 10GBE 8P 2,5GBE 2P 25G SFP28

Overview
Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7'')
Port Layout:
- 2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
- 10 GbE RJ45: 16 (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28: 2 (25G/10G/1G)
Redundancy: DC Power Backup
Layer 3: âœ"
Form Factor: Rack mount (1U)
Etherlighting™: âœ"

Performance
Switching Capacity: 460 Gbps
Total Non-Blocking Throughput: 230 Gbps
Forwarding Rate: 342 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 128,000
L3 Table Size:
- ARP Entries: 128,000
- IPv4 Routes: 256,000
Packet Buffer Size: 8 MB
Access Lists:
- IPv4: 256
- MAC: 256

Layer 3 Features
DHCP Server (Local Networks): âœ"
DHCP Relay: âœ"
Inter-VLAN Routing (Local Networks): âœ"
Static Routing (Local Networks): âœ"

Layer 2 Features
LACP Port Aggregation: âœ"
STP & RSTP: âœ"
IGMP Snooping: âœ"
802.1X Control: âœ"
MAC-Based ACLs & Device Isolation: âœ"
DHCP Snooping & Guarding: âœ"
Egress Rate Limit: âœ"
Flow Control: âœ"
Storm Control: âœ"
Multicast & Broadcast Rate Limiting: âœ"
MAC Address Blocking: âœ"
IP-Based ACLs & Network Isolation: âœ"
MAC-Based Port Restriction: âœ"
Port Isolation: âœ"
Port Mirroring: âœ"
Jumbo Frames: âœ"
LLDP-MED: âœ"
Voice VLAN: âœ"
Loop Protection: âœ"

Hardware
Max. Power Consumption: 150W
Power Method:
- (1) Universal input, 100—240V AC, 50/60 Hz
- (1) USP RPS DC input
Power Input Method: AC input
Power Supply: AC/DC, internal, 200W
Supported Voltage Range: 100—240V AC
Management: Ethernet AR
Weight:
- Without mounting brackets: 7.2 kg (15.9 lb)
- With mounting brackets: 7.3 kg (16.1 lb)
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth:
- 482.6 mm (19'') four-post racks
- Posts depths ranging from 600 to 1,066 mm (23.6-42”)
LCM Display: 1.3'' touchscreen
ESD Protection: Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Etherlighting™:
Ethernet: âœ"
SFP28: âœ"
LEDs: RPS âœ"
NDAA Compliant: âœ"
Certifications: CE, FCC, IC, Anatel: 06464-25-08356

Software
Application Requirements: UniFi Network
Version 9.0.114 and later
