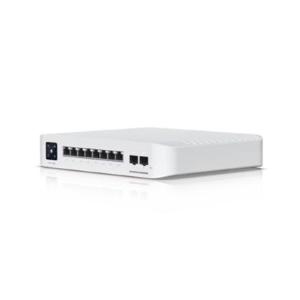

SWITCH UNIFI 10P UBIQUITI USW-PRO-XG-8-POE-EU 8P 10GBE POE++ 2P 10G SFP+

Overview
Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7'')
Port Layout:
- 1 GbE RJ45: 8 (6 PoE+; 2 PoE++) (1G/100M/10M)
- 10G SFP+: 2 (10G/1G)
Max. PoE Output: Up to PoE++
Total PoE Availability: 120W
Layer 3: âœ"
Form Factor: Compact desktop, wall

Performance
Switching Capacity: 56 Gbps
Total Non-Blocking Throughput: 28 Gbps
Forwarding Rate: 42 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 16,000
L3 Table Size:
- ARP Entries: 6,000
- IPv4 Routes: 512
Packet Buffer Size: 1.5 MB
Access Lists:
- IPv4: 128
- MAC: 128

Layer 3 Features
DHCP Server (Local Networks): âœ"
DHCP Relay: âœ"
Inter-VLAN Routing (Local Networks): âœ"
Static Routing (Local Networks): âœ"

Layer 2 Features
LACP Port Aggregation: âœ"
STP & RSTP: âœ"
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): âœ"
IGMP Snooping: âœ"
802.1X Control: âœ"
MAC-Based ACLs & Device Isolation: âœ"
DHCP Snooping & Guarding: âœ"
Egress Rate Limit: âœ"
Flow Control: âœ"
Storm Control: âœ"
Multicast & Broadcast Rate Limiting: âœ"
MAC Address Blocking: âœ"
IP-Based ACLs & Network Isolation: âœ"
MAC-Based Port Restriction: âœ"
Port Isolation: âœ"
Port Mirroring: âœ"
Jumbo Frames: âœ"
LLDP-MED: âœ"
Voice VLAN: âœ"
Loop Protection: âœ"

Hardware
PoE Ports:
- PoE+: 6
- PoE++: 2
Max. PoE Wattage per Port by PSE:
- PoE: 15.4W
- PoE+: 32W
- PoE++: 64W
Max. Power Consumption:
- 30W (Excluding PoE Output)
- 150W (Including PoE Output)
Power Method: Universal input, 100—240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 150W
Supported Voltage Range: 100—240V AC
Management: Ethernet AR
Heat Dissipation: 102.4 BTU/hr (Excluding PoE Output)
Weight: 2.1 kg (4.6 lb)
Enclosure Material: Polycarbonate, metal
Mount Material: Polycarbonate
Supported Rack Depth: 400~1200 mm (15.7-47.2'')
LCM Display: 1.3'' touchscreen
Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: âœ"
Certifications: CE, FCC, IC, Anatel: 05214-24-08356

Software
Application Requirements: UniFi Network
Version 7.5.176 and later
