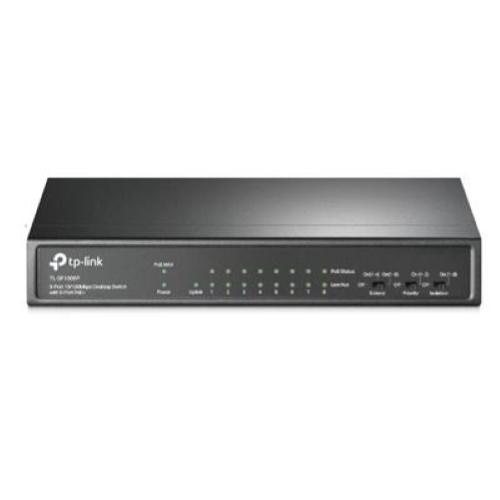

SWITCH 9P LAN 10/100M TP-LINK TL-SF1009P Desktop con 8P PoE+ 1P 10/100 non PoE-Garanzia 3 anni-

CARATTERISTICHE HARDWARE
Interfaccia:
• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole: Fanless
Physical security lock: Yes
Alimentatore esterno: External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate: 1.3392 Mpps
Porte PoE:
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W
Tabella ARP: 2K
Jumbo frame: 2 KB
Capacità di switching: 1.8 Gbps
Dimensioni ( L x P x A ): 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption:
• 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation:
• 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected)

CARATTERISTICHE SOFTWARE
Metodo di trasmissione: Store-And-Forward
Funzionalità avanzate:
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:
• TL-SF1009P
• Power Adapter
• Installation Guide
Ambiente:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
