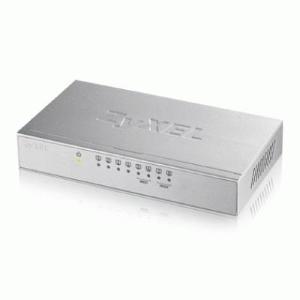

SWITCH 8P LAN Gigabit ZYXEL GS-108BV3-EU0101F v3 AUTO MDI/MDI-X -Garanzia 5 anni- Fino:31/12

System Specifications
Standard:
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3 Nway auto-negotiation
- IEEE 802.3x full duplex operation and flow control
- IEEE 802.3az Energy Efficient Ethernet
Performance:
- Data transfer rate (half duplex/full duplex):
- Ethernet: 10/20 Mbps
- Fast Ethernet: 100/200 Mbps
- Gigabit Ethernet: 1000/2000 Mbps
- MAC address table: 4 K
- Memory buffer: 128 KB
- Switching fabric (non-blocking): 16 Gbps
Features:
- Auto-MDI/MDIX in all ports
- Transmission method: Store-and-forward architecture
- Port-based QoS support
- Jumbo frame support up to 9 KB

Hardware Specifications
Interface: 8x RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
QoS Ports: 2x high-priority QoS ports and 2x medium-priority QoS ports
LED Indicator:
- PWR: Power
- Per port: Link/Activity
- Amber: 10/100 Mbps
- Green: 1000 Mbps
Power Supply:
- Input: 100-240 V AC
- Output: 5 V DC, 1 A
Power consumption: 3.0 watt max.

Physical Specifications
Item dimensions (WxDxH): 155 x 85 x 26 mm (6.1'' x 3.3'' x 1.0'')
Item weight: 325 g (0.72 lb.)
Packing dimensions (WxDxH): 161 x 90 x 95 mm (6.3'' x 3.5'' x 3.7'')
Packing weight: 493 g (1.09 lb.)

Environmental Specifications
Operating Environment:
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (Non-condensing)
Storage Environment:
- Temperature: -40°C to 70°C (-40°F to 158°F)
- Humidity: 10% to 95% (Non-condensing)

Certification
EMC: CE, EAC, FCC, BSMI Class B

Package Contents
Gigabit switch
Power adapter
Quick start guide
