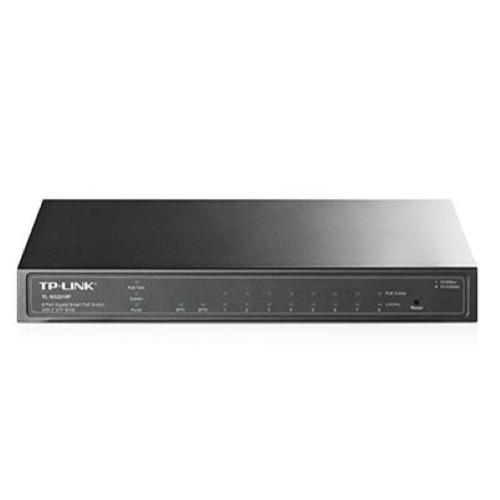

SWITCH 8P LAN Gigabit TP-LINK SG2210P(T1500G-10PS) PoE+ SMART RJ45 con 2 SFP,802.3af SFP - Alim.53W PoE-Garanzia a vita

CARATTERISTICHE HARDWARE
Standard e protocolli:
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
- IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
- IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaccia:
- 8 10/100/1000Mbps RJ45 Ports
- 2 1000Mbps SFP Slots
(Auto-Negotiation/Auto MDI/MDIX)
Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
Numero ventole: Fanless
Alimentazione:
- 100~240VAC, 50/60Hz
- External Power Adapter(Output: 48VDC/1.25A)
Consumo energetico:
- Maximum (PoE on): 63.4W (220V/50Hz)
- Maximum (PoE off): 10.4W (220V/50Hz)
Porte PoE:
- Standard: 802.3af compliant
- PoE Ports: 8 Ports
- Power Supply: 53W
Dimensioni ( L x P x A ): 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

PRESTAZIONI
Bandwidth/Backplane: 20Gbps
Packet Forwarding Rate: 14.9Mpps
Tabella ARP: 8k
Buffer (pacchetti): 512KB
Jumbo frame: 9216 Bytes

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- Support 802.1p CoS/DSCP priority
- Support 4 priority queues
- Queue scheduling: SP, WRR, SP+WRR
- Port/Flow- based Rate Limiting
- Voice VLAN
VLAN:
• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
ACL (Access Control List):
- L2～L4 package filtering based on source and destination
- MAC address, IP address, TCP/UDP ports, 802.1p,
- DSCP, protocol and VLAN ID
- Time Range Based
Sicurezza:
- SSH v1/v2
- SSL v2/v3/TLSv1
- Port Security
- Broadcast/Multicast/Unknown unicast Storm Control
- 802.1x and Radius Authentication�IP-Mac-Port-VID Binding�ARP Inspection�DHCP Snooping�DoS Defend
Caratteristiche di switching L3:
- IGMP Snooping V1/V2/V3
- 802.3ad LACP (Up to 6 aggregation groups,
- containing 4 ports per group)
- Spanning Tree STP/RSTP/MSTP
- BPDU Filtering/Guard
- TC/Root Protect
- Loop back detection
- 802.3x Flow Control
- LLDP(LLDP-MED)
Gestione:
- Web-based GUI and CLI management
- SNMP v1/v2c/v3, compatible with public MIBs and
- TP-LINK private MIBs
- RMON (1, 2, 3, 9 groups)
- CPU Monitoring
- Port Mirroring
- Time Setting: SNTP
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
- TL-SG2210P
- Power Adapter
- Installation Guide
- Resource CD
- Rubber Feet
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente:
- Operating Temperature: 0℃~40℃ (32℉~104℉);
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
