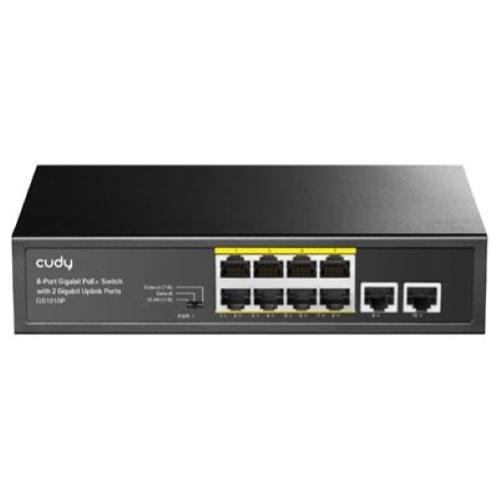

SWITCH 8P 10/100/1000M POE+ CUDY GS1010P +2P UPLINK GIGABIT RJ45 - ALIM.INT.80W

Interfaces
Gigabit RJ45 Ports: 2
Gigabit RJ45 PoE Ports: 8
Max Power on a Single PoE Port: 30W
PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
Extend Mode Ports: #7~#8
VLAN Mode Ports: #1~#8
LED:
- Power
- Speed/Link/ACT of Each Ethernet Port
- PoE Status of Each PoE Port
Power Input: AC Inlet
Physical Buttons: VLAN/Default/Extend DIP Switch

Performance
Copper Speed and Distance:
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit
- Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table: 2048
Max Switching Capacity: 20 Gbps
Jumbo Frame: 2 KB
Packet Buffer: 448 Kbit

Power
Power Methods: AC
AC: 100-240V 50/60Hz
Power Supply: 120W
Max Power Excluding PoE: 10W

Switching
802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE

Reliability
Grounding Methods: Three-Prong Plug
Lightning/Surge Protection: Power: DM 2kV, CM 4kV
Environment:
- Operating Temperature: 0~40 ℃ (32~104 ℉)
- Storage Temperature: -40~70℃ (-40~158 ℉)
- Operating Humidity: 10~90% non-condensing
- Storage Humidity: 10~95% non-condensing

Mechanical
Dimension: 220×150×44 mm
Product Weight: 630 g (22.22 oz.)
Casing Material: Metal
Installation:
- Desktop
- Rackmount via Brackets (Brackets not included in the box)

Package Content
GS1010P
Power Cord
Installation Guide
