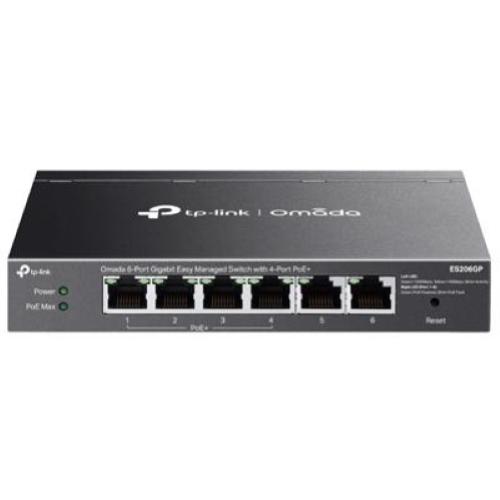

SWITCH 6P LAN Gigabit PoE+ TP-LINK ES206GP Easy Managed 4P Gigabit PoE (integ,contr.Omada SDN)

CARATTERISTICHE HARDWARE
Interfaccia:
- 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)
- Auto-Negotiation/Auto MDI/MDIX
Numero ventole: Fanless
Installation:
- Desktop
- Wall Mount
Physical security lock: √
Alimentazione: DC Power Adapter (Output: 53.5VDC / 1.31A)
Porte PoE:
- Standard: 802.3af PoE and 802.3at PoE+ compliant
- PoE Ports: 4 ports
- PoE Budget: 65W available for all PoE+ ports, 30W max per port
- Fast PoE & Perpetual PoE
- PoE Auto Recovery
- Up to 250m PoE transmission distance
Dimensioni ( L x P x A ): 158 × 101 × 25 mm
Surge Protection: ±6kV

PRESTAZIONI
Capacità di switching: 12 Gbps
Packet Forwarding Rate: 7.4 Mpps
Tabella ARP: 8K
Buffer (pacchetti): 4 Mbit
Jumbo frame: 15 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- Port-based/802.1p/DSCP QoS
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rating Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Controlâ–³
Funzionalità L2:
- Static Link Aggregation
- Loop Prevention / Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
L2 Multicast:
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN:
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Metodo di trasmissione: Store-And-Forward

GESTIONE
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Unified Configuration

ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:
- ES206GP
- Power Adapter
- Power Cord
- Rubber Feet
- Installation Guide
Ambiente:
- Operating Temperature: -5℃~40℃ (23℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
