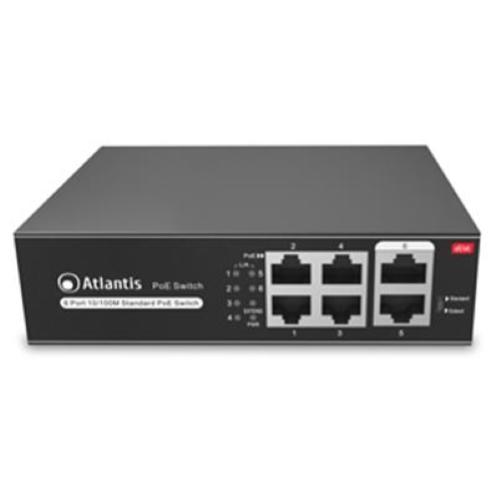

SWITCH 6P LAN 10/100M ATLANTIS A02-F6P4-65W di cui 4P PoE fino 60W - RACK 19" - Metallo

Standard
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3af (Mode A) [PoE: pin 3,6 for power- and pin 1,2 for power+] up to 15W
- IEEE 802.3at (Mode A) [PoE: pin 3,6 for power- and pin 1,2 for power+] up to 30W
- IEEE 802.3x Flow Control

Network Media
- 10Base-T: UTP category 3, 4, 5 cable Unshielded Twisted Pair (UTP) Cable
- 100Base-TX: UTP category 5, 5e cable Unshielded Twisted Pair (UTP) Cable
- PoE port: UTP category 5 Unshielded Twisted Pair (UTP) Cable

Protocol
CSMA/CD

Topology
Star

Ports
- 2 x 10/100 Mbps Auto-Negotiation, Auto-MDIX (port 5-6)
- 4 x 10/100 Mbps Auto-Negotiation, Auto-MDIX PoE Ports (port 1-4)

Switch mode
Using this button switch the customer can select, for PoE ports:
- (S): Standard Mode (max 30W, 100mt @100Mbps)
- (E): Long Distance Mode (max 15.4W, 200mt @10Mbps) with VLAN

Network Data Transfer Rate
- Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex)
- Fast Ethernet: 100Mbps (half duplex), 200Mbps (full- duplex)

Advanced Features
- VLAN, Long Trasmission Distance (200mt @10Mbps)
- Lightning Protection: 4KV 8/20 μs
- Protection Level: IP30

Diagnostic LEDs
Power, Link/ACT, Extended/VLAN

PoE (Power over Ethernet)
- Up to 30W per port
- PoE power up to 60W for all 4 PoE ports
- PD classification identify
- PoE Over Current Protection
- PoE Circuit sorting protection

Filtering Address Table
1K entries per device

RAM Buffer Size
768Kbit

Power Adapter
Input: 100-240VAC, 50-60Hz, 1A max

Power Consumption
- 3 Watt (Stand-By mode without PD device connected)
- 65 Watt (Maximum with 60W PoE device connected)

Dimensions (WxDxH)
140mm x 115mm x 40mm

Weight
600g

Temperature Range
- Operating Temperature: 0° ~ 40°C
- Storage Temperature: -10° ~ 60°C

Humidity
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
