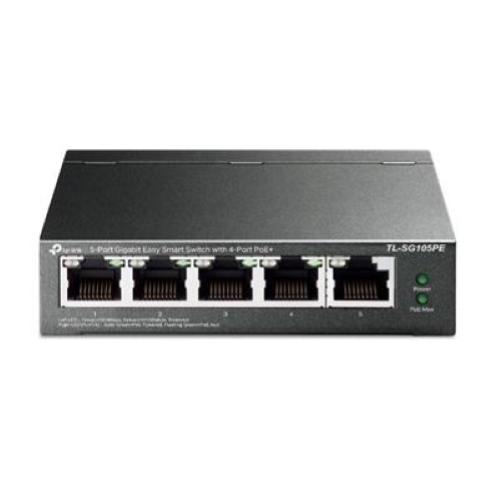

SWITCH 5P LAN Gigabit TP-LINK TL-SG105PE con 4P PoE+ -Garanzia a vita

CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interfaccia:
- 5x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole: Fanless
Alimentazione: External Power Adapter (Output: 53.5 VDC/1.31 A)
Porte PoE:
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1- Port 4
- PoE Power Budget: 65 W
Dimensioni ( L x P x A ): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption:
- 4.52 W (220V/50Hz with no PD connected)
- 75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation:
- 15.41 BTU/h (with no PD connected)
- 256.30 BTU/h (with 65 W PD connected)

PRESTAZIONI
Capacità di switching: 10 Gbps
Packet Forwarding Rate: 7.44 Mpps
Tabella ARP: 2 K
Buffer (pacchetti): 1.5 Mb
Jumbo frame: 16 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
Funzionalità L2:
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
- Extend Mode
VLAN:
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Gestione:
- Web-based GUI
- Easy Smart Configuration Utility
Metodo di trasmissione: Store-And-Forward

ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:
- TL-SG105PE
- Power Adapter
- Installation Guide
- Rubber Feet
Requisiti di sistema: Microsoft® Windows® for running Utility
Ambiente:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~95%RH non-condensing
