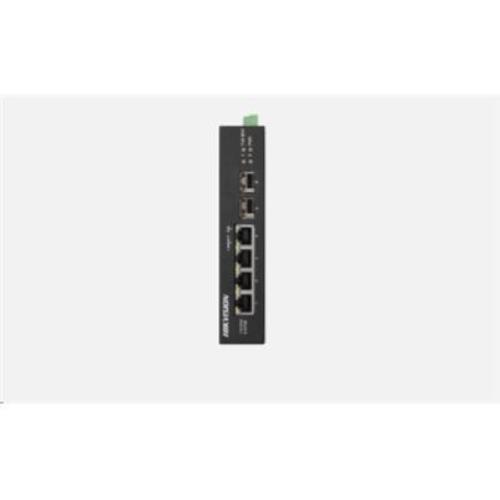

SWITCH 4P Gigabit RJ45 PoE + 2P Gigabit RJ45 uplink HIKVISION DS-3T0506HP-E/HS Unmanaged -802.3af/at/bt- Metallico

vedi pdf

Network Parameters
Port Number:
- 3 × gigabit PoE ports
- 1 × gigabit Hi-PoE port
- 2 × gigabit fiber optical ports
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode: Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding Mode: Store-and-forward switching
Ports For Long-Distance Transmission: Ports 3 and 4
MAC Address Table: 4 K
Internal Cache: 1.5 Mbits
Switching Capacity: 12 Gbps
Packet Forwarding Rate: 8.928 Mpps

PoE Power Supply
PoE Standard:
- Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: Ports 2 to 4
Max. Port Power:
- Port 1: 60 W
- Ports 2 to 4: 30 W
PoE Power Budget: 60 W

Dialing Function
Long Range: Ports 3 and 4: up to 300 m.
Port Isolation: Ports 1 to 4: port isolation mode to improve network security.
PoE Watchdog: Ports 1 to 4: auto detect and restart the cameras that do not respond.

General
Dimension (W × H × D): 158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity: 5% to 95% (no condensation)
Gross Weight: 0.94 kg (2.07 lb)
Net Weight: 0.38 kg (0.84 lb)
Power Consumption In Idle: < 5 W
Shell: Metal material, fan-free design
Operating Temperature: -30 °C to 65 °C (-22 °F to 149°F)
Operating Humidity: 5% to 95% (no condensation)
Power Supply: 48 to 57 VDC, 1.35 A Max.
Max. Power Consumption: 65 W

Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
