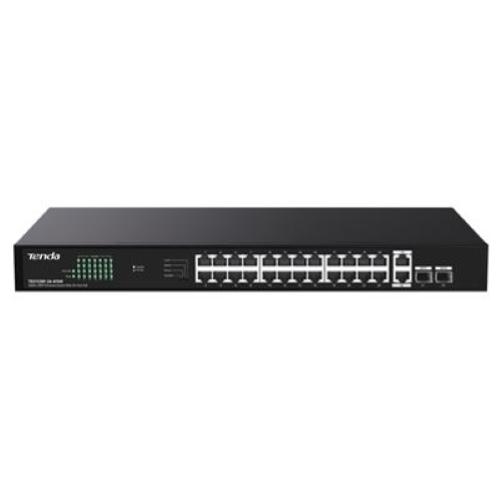

SWITCH 26P GE LAN +2P SFP TENDA TEG1128P-24-410W 24P PoE

Hardware
Standard di rete: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Indicatore LED: Power, Link/Act, PoE MAX
Interfacce:
- 26x 1Gbe RJ45 ports
- 2x 1Gbe SFP ports
Trasmissione media: Recommended: CAT5/5e UTP or better
Quantità delle ventole: 1
Dimensione: 440mm x 240mm x 44mm
Livello di protezione:
- Port: 6 KV
- Power: 6 KV
Modalità di inoltro: Store-and-forward
Portata switch: 56Gbps
Velocità di inoltro dei pacchetti: 41.7Mpps
Buffer: 4Mb
Tabella degli indirizzi MAC: 8K
Budget PoE:
- Single port: AF: 15.4W, AT: 30W
- Whole device: 370W
Consumo: 410W
Voltaggio in ingresso: 100-240V AC，50 / 60Hz
Montaggio:
- Rack mounting: support
- Desktop mounting: support
- Wall mounting: support
Ambiente:
- Operating temperature: 0°C - 45℃
- Storage temperature: -40°C - 70°C
- Operating humidity: 10% - 90%,non-condensing
- Storage humidity: 5% - 90%,non-condensing
Certificazione: FCC, CE, RoHS

Software
Funzioni
One-key to change network mode:
1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
3.Extend: The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other.
4.VLAN: Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.
