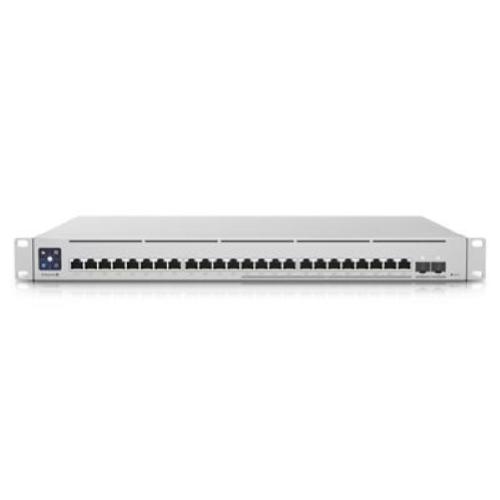

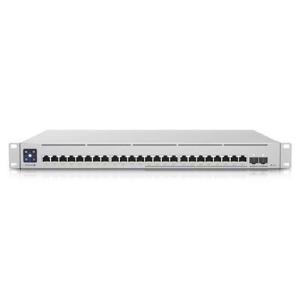

SWITCH 24P UBIQUITI USW-Enterprise-24-PoE L3 -48P

Mechanical
Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7'')
Weight:
- Without mounting brackets: 5.1 kg (11.3 lb)
- With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material: SGCC steel

Hardware
Management interface: Ethernet In-Band
Networking interface:
- 12x GbE RJ45 ports
- 12x 2.5 GbE RJ45 ports
- 2x 10G SFP+ ports
PoE interface: 24x PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput: 62 Gbps
Switching capacity: 124 Gbps
Forwarding rate: 92.25 Mpps
Power method:
- 1x Universal input, 100—240V AC, 8.5A Max., 50/60 Hz
- 1x USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
Power supply: AC/DC, internal, 550W
Supported voltage range: 100—240V AC
Max. power consumption: 550W
Total available PoE: 400W
Max. PoE+ wattage per port by PSE: 34.2W
Voltage range PoE mode:
- PoE: 44— 57V
- PoE+: 50—57V
Services: SMB Layer 3 PoE GbE switch
ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
LCM display: 1.3'' color touchscreen
Button: Factory reset
Operating temperature: -5 to 40° C (23 to 104° F)
Operating humidity: 10 to 95% noncondensing
Certifications: CE, FCC, IC

LEDs
System: Status
Ethernet: Link/activity
SFP+: Link/activity

Application Requirements
UniFi Network: Version 5.14.12 and later
