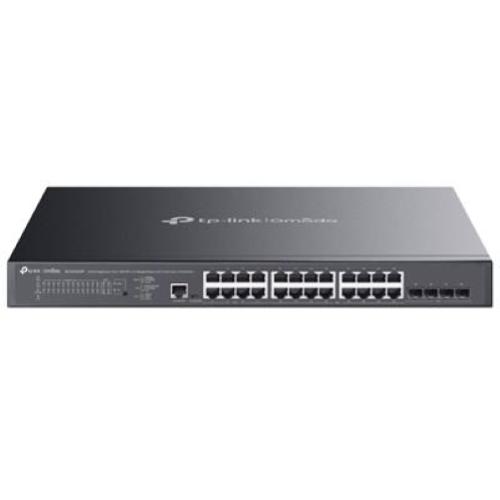

SWITCH 24P LAN Gigabit e 4P 10GE SFP+ L2+ TP-LINK SG3428XMPP 16P PoE+ e 8P PoE++ - Garanzia a vita

CARATTERISTICHE HARDWARE
Interfaccia:
- 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
- 4× 10G SFP+ Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
Numero ventole: 3
Physical security lock: √
Alimentazione: 100-240 V AC~50/60 Hz
Porte PoE:
- Standard: 802.3at/af/bt compliant
- PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
- PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port)
- Power Budget: 500 W
Dimensioni (L x P x A): 17.3×13.0×1.7 in (440×330×44 mm)
Tipo di montaggio: Rack Mountable
Max. Power Consumption: 605.5W (110V/60Hz) (with 500W PD connected)
Max. Heat Dissipation: 2064.96 BTU/hr (110 V/60 Hz) (with 500W PD connected)

PRESTAZIONI
Capacità di switching: 128 Gbps
Packet Forwarding Rate: 95.23 Mpps
Tabella ARP: 16 K
Buffer (pacchetti): 12 Mbit
Jumbo frame: 9 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
- Bandwidth Control: Port/Flow-based Rating Limiting
- Smoother Performance
- Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
Funzionalità L2 e L2+:
- 128 IP Interfaces: Support IPv4/IPv6 Interface
- Static Routing: 48 IPv4/IPv6 Static Routes
- Static ARP: 128 static entries
- 512 ARP Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Spanning Tree Protocol
- Loopback Detection
- 802.3x Flow Control
- Mirroring
L2 Multicast:
- Supports 1000 (IPv4, IPv6) IGMP groups
- IGMP Snooping
- IGMP Authentication
- Multicast VLAN Registration (MVR)
- MLD Snooping
- Multicast Filtering: 256 profiles and 16 entries per profile
Caratteristiche avanzate:
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
ISP Features:
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- PPPoE ID Insertion
- ERPS
- 802.3ah Ethernet Link OAM
- DDM
- sFlow
VLAN:
- VLAN Group: Max 4K VLAN Groups
- 802.1q Tagged VLAN
- MAC VLAN: 30 Entries
- Protocol VLAN: Protocol Template 16, Protocol VLAN 16
- Private VLAN
- GVRP
- VLAN VPN: VLAN Mapping, VLAN Replace
- Voice VLAN
ACL (Access Control List):
- Time-based ACL
- MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
- IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
- Combined ACL
- Packet Content ACL
- IPv6 ACL
- Policy: Mirroring, Redirect, Rate Limit, QoS Remark
- ACL applies to Port/VLAN
Sicurezza:
- IP-MAC-Port Binding
- 512 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard: 100 Entries
- IPv6-MAC-Port Binding
- 512 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard: 100 Entries
- DoS Defend
- DHCP Filter
- Static/Dynamic Port Security: Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
- 802.1X
- Port-based authentication
- Mac-base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Radius authentication and accountability support
- AAA (including TACACS+)
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC-based access control
IPv6:
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 ACL
- IPv6 Interface
- Static IPv6 Routing
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs:
- MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIB

GESTIONE
Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features:
- Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP AutoInstall
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- Password Recovery
- SNTP
- System Log

ALTRO
Certificazione: CE, FCC
Contenuto della confezione:
- SG3428XMPP Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente:
- Operating Temperature: 0–40 ℃ (32–104 ℉);
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
