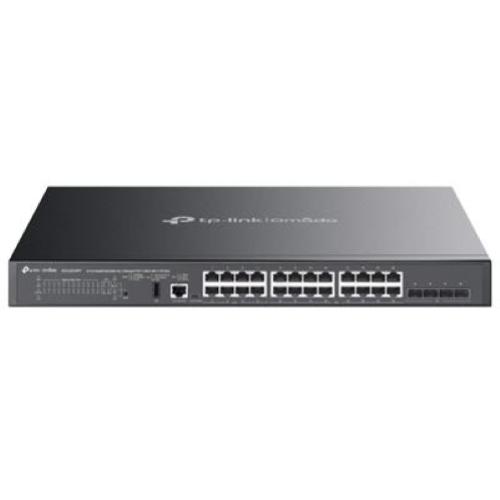

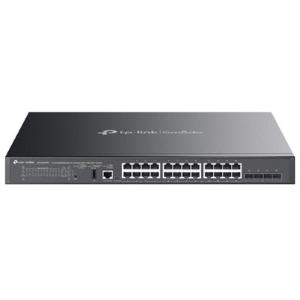

SWITCH 24P Gigabit Stackable Lite L3 Managed PoE++ - 4P 10G SFP+ TP-LINK SG5428XMPP - Garanzia a vita

CARATTERISTICHE HARDWARE
Interfaccia:
- 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
- 4× 1/10 Gbps SFP+ Slots
- 1× USB 2.0 Ports
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
Numero ventole: 3
Alimentazione: 100-240 V~ 50/60 Hz
Porte PoE:
- Standard: 802.3af/at/bt compliant
- PoE++ Ports: Ports 1~8 (up to 90W per Port)
- PoE+ Ports: Ports 9~24 (up to 30W per Port)
- Power Budget: 500W*
- Fast PoE
- Perpetual PoE
Dimensioni ( L x P x A ): 440 × 330 × 44 mm
Tipo di montaggio: Rackmountable
Max Power Consumption: 615.8W (110V/60Hz) (with 500W PD connected)
Max Heat Dissipation: 2099.88 BTU/hr (110 V/60 Hz) (with 500W PD connected)

PRESTAZIONI
Capacità di switching: 128 Gbps per Unit
Stacking:
- Stacking Number: 4
- Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
- Stack Bandwidth: Up to 40 Gbps (4 stacking ports)
Packet Forwarding Rate: 95.23 Mpps
Tabella ARP: 16 K
Buffer (pacchetti): 12 Mbit
Jumbo frame: 9 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control
- Rate Limit
- Storm Control
- Voice VLAN
- User-Defined OUI
- Smoother Performance
- Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
Caratteristiche L3:
- IP Interfaces:
- IPv4: Max 128, IPv6: Max 128
- Static Routing
- IPv4 Max 512, IPv6: Max 128
- Host Route Table: Max 1,024 entries
- RIP: Version v1/v2, Max 1,796
- OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
- Static ARP: 512 static entries
- Dynamic ARP: 3,600 dynamic entries
- Proxy ARP
- DHCP Server:
- Max 64 IP Pools
- Max 1,000 Manual Binding Entries
- DHCP Relay:
- Relayed Interface
- Relayed VLAN
Funzionalità L2 e L2+:
- Link Aggregation
- Spanning Tree Protocol
- Port-based and VLAN-based Loopback Detection
- 802.3x Flow Control
- ERPS
- Mirroring
- RSPAN
- MAC Address Table
- Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table: Max 2,000
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast Groups
- Multicast Filtering
Caratteristiche avanzate:
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
ISP Features:
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow
VLAN:
- Max 4K VLAN Group (802.1q VLAN)
- 802.1Q Tagged VLAN
- MAC VLAN Entries: 60
- Multicast VLAN
- Management VLAN
- VLAN VPN (QinQ): Max 256 entries
- GVRP
- Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
- Voice VLAN
- Private VLAN
Sicurezza:
- Port Isolation
- CPU-Defend
- ARP Inspection (Dynamic ARP Inspection)
- DoS Defend
- IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
- IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
- DHCP Filter
- Static/Dynamic Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
- 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
- AAA (including TACACS+)
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv2
- IP/Port/MAC-based access control

GESTIONE
Omada App: Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features:
- Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- IEEE 802.3az Energy Efficient Ethernet (EEE)

ALTRO
Contenuto della confezione:
- SG5428XMPP Switch
- Power Cord
- Console Cable
- Rackmount Kit
- Rubber Feet
- Quick Installation Guide
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente:
- Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)
- Storage Temperature: -40 °C to 70 ℃ (-40 °F to 158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
