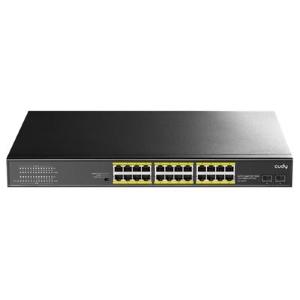

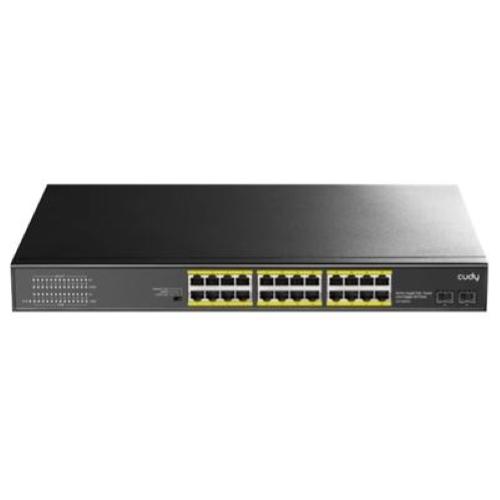

SWITCH 24P 10/100/1000M BASE-T CUDY GS1028PE 2P 1000 BASE-X SFP SLOT - POE+ 300W

Interfaces
Gigabit SFP Slots: 2
Gigabit RJ45 PoE Ports: 24
Max Power on a Single PoE Port: 30W
PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
Extend Mode Ports: #17~#24
VLAN Mode Ports: #1~#24
LED:
- Power
- Speed/Link/ACT of Each Ethernet Port
Power Input: AC Inlet

Performance
Copper Speed and Distance:
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit
- Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.
Optical Spec and Distance: Depends on the Installed Optical Module
MAC Address Table: 8192
Max Switching Capacity: 52 Gbps

Power
Power Methods: AC
AC: 100-240V 50/60Hz
Power Supply: 300W
Max Power Excluding PoE: 10W

Switching
802.3 Protocols:
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
- 802.3z 1000BASE-X
- 802.3x Flow Control
- 802.3af PoE
- 802.3at PoE

Reliability
Grounding Methods: Three-Prong Plug
Lightning/Surge Protection: Power: DM 2kV, CM 4kV
Environment:
- Operating Temperature: 0~40 ℃ (32~104 ℉)
- Storage Temperature: -40~70℃ (-40~158 ℉)
- Operating Humidity: 10~90% non-condensing
- Storage Humidity: 10~95% non-condensing

Mechanical
Dimension: 440×204×44 mm
Product Weight: 2905 g (102.47 oz.)
Casing Material: Metal
Installation:
- Desktop
- Rackmount via Brackets

Package Content
GS1028PS2
Power Cord
Mounting Kit
Installation Guide
