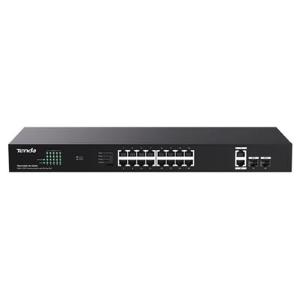

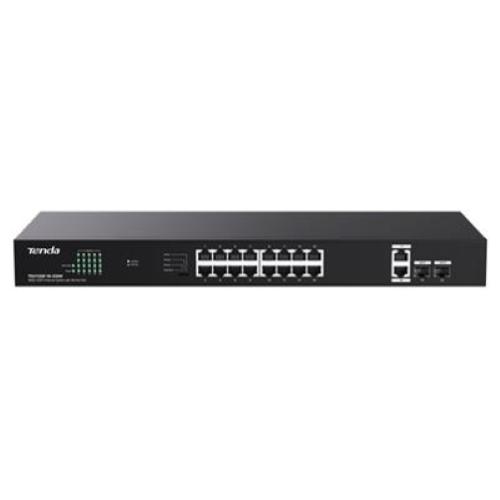

SWITCH 18P GE LAN +2P SFP TENDA TEG1120P-16-250W 16P PoE

Hardware
Standard di rete: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Indicatore LED: Power, Link/Act, PoE MAX
Interfacce:
- 18x 1Gbe RJ45 ports
- 2x 1Gbe SFP ports
Trasmissione media: Recommended: CAT5/5e UTP or better
Quantità delle ventole: 1
Dimensione: 440mm x 178mm x 44mm
Livello di protezione:
- Port: 6 KV
- Power: 6 KV
Modalità di inoltro: Store-and-forward
Portata switch: 40Gbps
Velocità di inoltro dei pacchetti: 29.8Mpps
Buffer: 4MB
Tabella degli indirizzi MAC: 8K
Budget PoE:
- Single port: AF: 15.4W, AT: 30W
- Whole device: 230W
Consumo: 250W
Voltaggio in ingresso: 100-240V AC，50 / 60Hz
Montaggio:
- Rack mounting : support
- Desktop mounting: support
- Wall mounting: support
Ambiente:
- Operating Temperature: 0℃~45℃
- Storage Temperature: -40℃~70℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Certificazione: FCC, CE, RoHS

Software
Funzioni
One-key to change network mode:
1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
