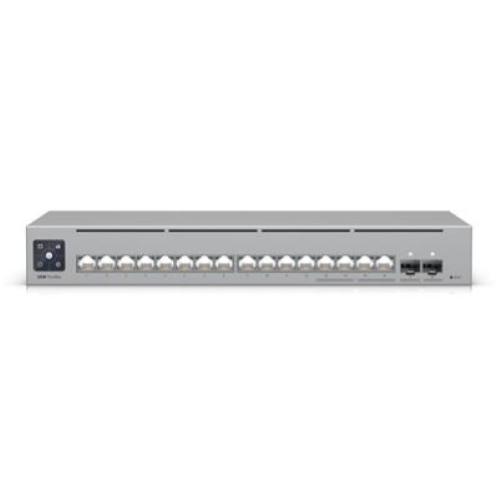

SWITCH 16P LAN GIGABIT UBIQUITI USW-Pro-Max-16 L3 4P RJ45 da 2.5GbE 12P GbE RJ45 2P SFP+ 10G montaggio rack

Mechanical
Dimensions: 325.1 x 160 x 43.7 mm
Weight: 1.95 kg
Enclosure material: SGCC steel

Hardware
Management interface: Ethernet In-Band
Networking interface:
- 12x GbE RJ45 ports
- 4x 1/2.5 GbE RJ45 ports
- 2x 10G SFP+ ports
Total non-blocking throughput: 42 Gbps
Switching capacity: 84 Gbps
Forwarding rate: 62.496 Mpps
Power method: Type-C adapter
Power supply: 5V, 25W
Max. power consumption: 25W
LCM display: 1.3'' touchscreen
Button: Factory reset
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

Switching Features
Layer 2 features:
- IGMP snooping
- STP / RSTP with priorities and port-level disable
- Port isolation
- Storm control
- Voice VLAN
- Port mirroring
- LACP port aggregation
- Multicast / broadcast rate limiting
- MAC address blocking
- Flow control
- 802.1X control
- Jumbo frames
- Proprietary loop protection
- DHCP snooping / guarding
- Egress rate limit
- LLDP-MED
- Port restricted by MAC
- Device isolation with ACLs
Layer 3 features:
- DHCP for locally-managed networks
- DHCP relay
- Inter-VLAN routing between networks on same switch
- Static routing between local networks
- Network isolation with ACLs

Etherlighting™
Ethernet:
- Locating
- Speed/link
- Native VLAN/network
SFP+:
- Locating
- Speed/link
- Native VLAN/network

Application Requirements
UniFi Network: Version 8.1.127 and later
