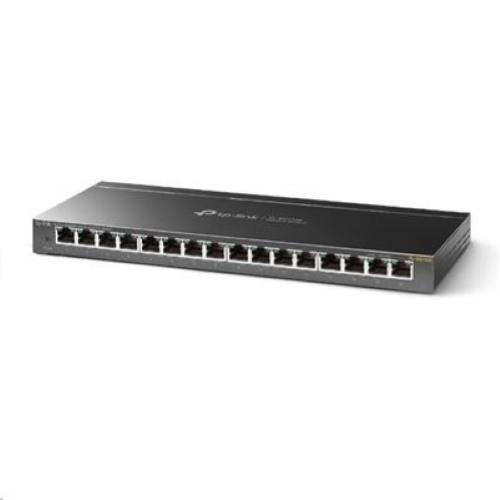

SWITCH 16P LAN Gigabit TP-LINK TL-SG116E Easy Smart RJ45, Desktop steel case MTU/Port/Tag-based VLAN

CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interfaccia:
- 16 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
Numero ventole: Fanless
Alimentazione: External Power Adapter(Output: 9VDC/0.6A)
Consumo energetico: Maximum: 9.27W (220V/50Hz)
Dimensioni ( L x P x A ): 11.3*4.4*1.0 in. (286*111.7*25.4 mm)
Max Power Consumption: 9.19W(220V/50Hz)
Max Heat Dissipation: 31.36BTU/h

PRESTAZIONI
Capacità di switching: 32Gbps
Packet Forwarding Rate: 23.81Mpps
Tabella ARP: 8K
Buffer (pacchetti): 4.1Mb
Jumbo frame: 9KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- Support Port-based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
Funzionalità L2:
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN:
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Metodo di trasmissione: Store-And-Forward

ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:
- TL-SG116E
- Power Cord
- Installation Guide
- Rubber Feet
Requisiti di sistema: Microsoft® Windows® for running Utility
Ambiente:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
