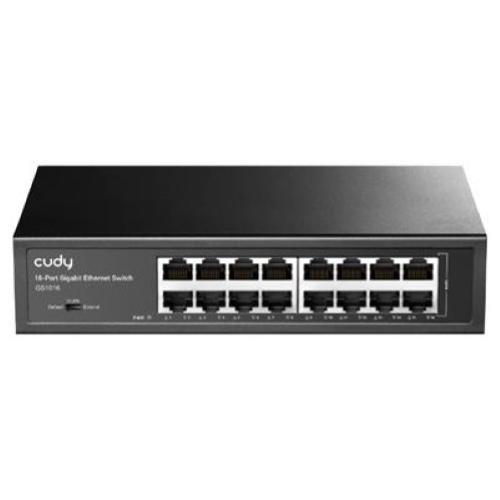

SWITCH 16P LAN GIGABIT CUDY GS1016 IN ACCIAIO - INCL.KIT MONT.RACK

Interfaces
Gigabit RJ45 Ports: 16
Extend Mode Ports: #1~#14
VLAN Mode Ports: #1~#14
LED:
- Power
- Speed/Link/ACT of Each Ethernet Port
Power Input: AC Inlet
Physical Buttons: VLAN/Default/Extend DIP Switch

Performance
Copper Speed and Distance:
- Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit
- Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports.
MAC Address Table: 8192
Max Switching Capacity: 32 Gbps
Jumbo Frame: 15 KB
Packet Buffer: 4 Mbit

Power
Basic Power Saving: True
Power Methods: AC
AC: 90~260V 50/60Hz
Max Power Consumption: 7.8W
Idle Power Consumption: 4.5W

Switching
802.3 Protocols:
- 802.3x Flow Control
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
802.1 Protocols: 802.1p: LAN Layer 2 QoS/CoS
L2 Features:
- IGMP Snooping
- Loop Prevention
- Loop Detection
- DSCP QoS
- 802.1p QoS

Reliability
Grounding Methods:
- Three-Prong Plug
- Grounding Point
ESD:
- Contact: 6KV
- Air: 8KV
Lightning/Surge Protection:
- RJ45: 4KV
- AC: CM 4KV/DM 2KV
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

Mechanical
Dimension: 200×118×44 mm
7.87×4.65×1.73 inches
Product Weight: 619 g (21.83 oz.)
Casing Material: Metal
Installation:
- Desktop
- Rackmount via Brackets

Package Content
GS1016
Power Cord
Installation Guide
Mounting Kit
