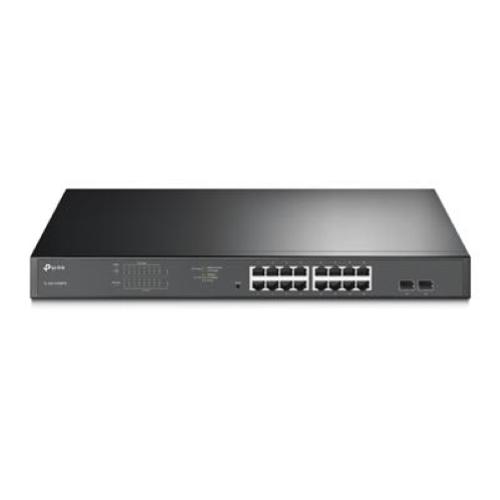

SWITCH 16P Gigabit PoE+ TP-LINK TL-SG1218MPE Easy Smart Switch RJ45 PoE-2P SFP

CARATTERISTICHE HARDWARE
Standard e protocolli: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interfaccia:
- 16 10/100/1000 Mbps RJ45 Ports
- (Auto Negotiation/Auto MDI/MDIX)
- 2 Gigabit SFP Ports
Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF
Numero ventole: 2 Fans
Physical security lock: Yes
Alimentazione: 100-240V AC, 50/60 Hz
Porte PoE+:
- Standard: 802.3at/802.3af compliant
- PoE+ Ports: 16 Ports
- Power Supply: 192W
Dimensioni ( L x P x A ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Tipo di montaggio: Rack Mountable
Max Power Consumption:
- 18.73 W (220/50Hz. no PD connected)
- 217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation:
- 63.89 BTU/h (no PD connected)
- 741.15 BTU/h (with 192W PD connected)

PRESTAZIONI
Capacità di switching: 36 Gbps
Packet Forwarding Rate: 23.8 Mbps
Tabella ARP: 8K
Buffer (pacchetti): 4.1 Mbit
Jumbo frame: 9 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- Support Port-based 802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
Funzionalità L2:
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN:
- Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Gestione:
- Web-based GUI
- Easy Smart Configuration Utility
Metodo di trasmissione: Store-And-Forward

ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione:
- TL-SG1218MPE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
Ambiente:
- Operating Temperature: 0°C~50°C (32°F~122°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
