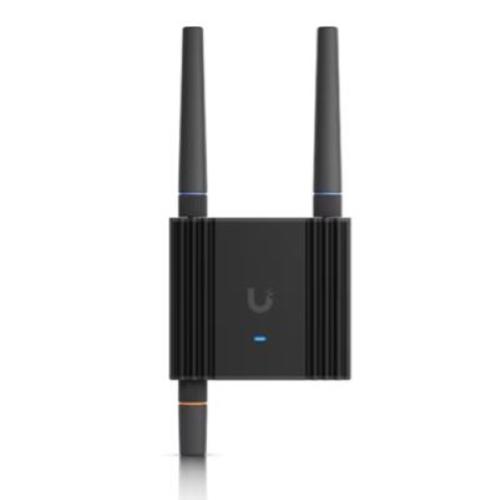

WIRELESS UNIFI MOBILE ROUTING UBIQUITI UMR-ULTRA LTE COMPATTO 2P FE RJ45

Overview
Dimensions:
- Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1'')
- With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1'')
Networking Interface: (2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4
SIM: Nano SIM
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B34, B38, B39, B40, B41
Mounting: DIN rail, Wall (Mounts Included)

Mechanical
Weight:
- Device: 200 g (7.1 oz)
- DIN rail/wall mounts: 20 g (0.7 oz)
Enclosure Material: Polycarbonate
Mount Material:
- Wall Mount: Polycarbonate
- DIN Rail Mount: Steel

Features
WAN Priority & Fallback: âœ"
Cellular: âœ"
WiFi: âœ"
Ethernet: âœ"
LTE Passthrough mode: âœ"
Ethernet Bridge Mode: âœ"
VPN Client:
OpenVPN: âœ"
WireGuard: âœ"
Site-to-Site VPN:
IPsec: âœ"
WireGuard: âœ"
WiFi Standard: WiFi 4
Port Forwarding: âœ"
Firewall: âœ"
Static Routes: âœ"

Networking
Supported Data Rates:
- 802.11n: 6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps

Hardware
Management:
- Ethernet
- WiFi
LTE Throughput Speed: Download 150 Mbps / Upload 50 Mbps
Antennas
Ports:
-(1) Mobile 1: SMA female (1Rx)
- (1) Mobile 2: SMA female (1Tx/1Rx)
- (1) WiFi: RP-SMA female
Type:
- (2) External LTE antenna
- (1) External WiFi
Max. TX Power: 17 dBm
WiFi MIMO: 1 x 1
Max. Power Consumption: 5.7W
Power Method:
- USB Type-C (5V DC/2A)
- 4-pin ATX DC (9—30V DC)
Buttons: (1) Factory-reset
Ambient Operating Temperature: -30 to 70° C (-22 to 158° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: CE, UKCA, Anatel: 04867-25-08356
