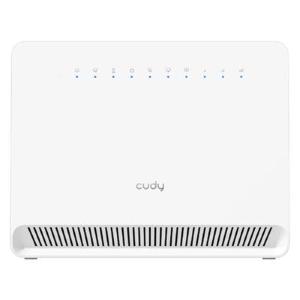

WIRELESS ROUTER N300 4G LTE CUDY LT400V CAT.4 300MBPS 4P 10/100M RJ45 1P RJ11 - VOLTE, NANO SIM SLOT

CPU
Chipset: MT7628
CPU Details: 580 MHZ Single-Core, MIPS24KEC

Memory/Storage
Flash/ROM: 8 MB (64 Mbit ) NOR
DDR/RAM: 64 MB (512 Mbit) DDR2

Cellular
Cellular Standards: 4G Cat. 4
Cellular Antennas: 2× Fixed
SIM Options: 1× Nano SIM Slot

EU Version Cellular
Max DL Speed: 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed: 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced: DL 2×2 MIMO
Cellular Bands:
- LTE-FDD: B1/3/5/7/8/20/28
- LTE-TDD: B38/40/41
- WCDMA: B1/5/8

Wireless
2.4 GHz Wi-Fi Speed: 300 Mbps
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Fixed
5 GHz Antenna Gain Max: 3.97 dBi
2.4 GHz Antenna Gain Max: 3.54 dBi
Beamforming: True
FEM or PA/LNA: 2.4 GHz: 2× Internal
Range Performance:
- Max: 130 m (427 ft)
- Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
- One wooden walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 10 cm (4'')

Interfaces
Physical Buttons:
- Power On/Off Button
- WPS Button
- Reset Button
10/100 Mbps RJ45 Ports: 4
Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
FXS Ports: 1× RJ11 (VoLTE)
LED:
- System
- Internet
- Wi-Fi
- WPS
- Phone
- LAN
- WAN/LAN
- Cellular Signal Strength
Power Input: DC Jack

Power
Power Methods: DC
DC: 12V 1A
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
Max Power Consumption (W): 8W
Idle Power Consumption (W): 4W

Reliability
ESD Contact Protection: 4kV
ESD Air Protection: 8kV
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

Certifications
FCC, CE

Mechanical
Dimension: 190×50×148.8 mm
Product Weight: 315.5 g (11.13 oz.)
Installation: Desktop

Package Content
LT400V
Power Adapter
Ethernet Cable
Installation Guide
