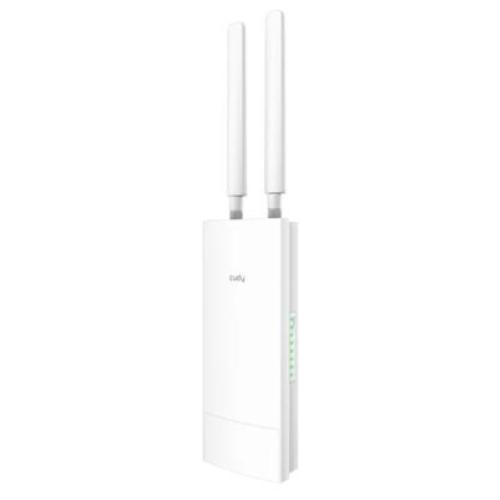

WIRELESS ROUTER N300 4G LTE CUDY LT400 OUTDOOR CAT4 300MBPS LIGHTNING PROT IP65 WATERPR 1P 100M RJ45 2 ANT.4G ADAT.POE INCL.

CPU
Chipset: MT7628
CPU Details: 580 MHZ Single-Core, MIPS24KEC

Memory/Storage
Flash/ROM: 8 MB (64 Mbit) NOR
DDR/RAM: 64 MB (512 Mbit) DDR2

Cellular
Cellular Standards: 4G Cat. 4
Cellular Antennas: 2× Fixed
Detachable Cellular Antennas Connector: SMA Female
SIM Options: 1× Nano SIM Slot

EU Version Cellular
Max DL Speed: 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed: 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced: DL 2×2 MIMO
Cellular Bands:
- LTE-FDD: B1/3/5/7/8/20/28
- LTE-TDD: B38/40/41
- WCDMA: B1/5/8

Wireless
2.4 GHz Wi-Fi Speed: 300 Mbps
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
Beamforming: True
Range Performance:
- Max: 170 m (558 ft)
- Park: 150 m (492 ft)
- Street: 30 m (98 ft)
- Woods: 30 m (98 ft)

Interfaces
Physical Buttons: Reset Button
10/100 Mbps RJ45 Ports: 1
Ethernet Notes: Accepts PoE powering
LED:
- System
- Internet
- LAN
- Wi-Fi
- Cellular Signal Strength
Power Input: PoE via Ethernet Port

Power
Power Methods: Passive PoE
Passive PoE: 24V
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 24V 0.5A DC
Max Power Consumption (W): 8W
Idle Power Consumption (W): 4W

Reliability
Lightning/Surge Protection: DM 2kV, CM 4kV
ESD Contact Protection: 4kV
ESD Air Protection: 8kV
Environment:
- Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
- Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 0% ~ 100% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

Certifications
FCC, CE

Mechanical
Dimension:
- Device Body: 240×100×53.7 mm
- Each Antenna: 197.5×21.6×15.5 mm
Product Weight: 420 g (14.82 oz.)
Installation:
- Wall-mount
- Pole-mount

Package Content
LT400 Outdoor
Detachable Antennas
PoE Adapter
Power Cord
Mounting Kit
Ethernet Cable
Installation Guide
