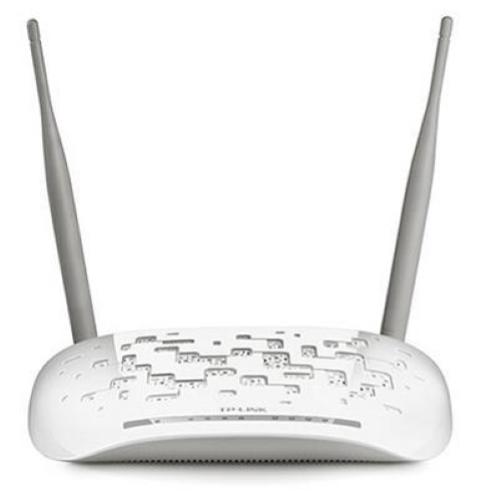

WIRELESS ROUTER ''N''ADSL2+ TP-LINK TD-W8961N (ANNEX A) 300M 802.11BGN 4P LAN

Descrizione

CARATTERISTICHE HARDWARE
Interfaccia: 4 10/100Mbps RJ45 Ports
1 RJ11 Port
Tasto: 1 Power On/Off Switch
1 WPS Button
1 Wi-Fi On/Off Button
Alimentatore esterno: 9VDC/0.85A
Standard IEEE: IEEE 802.3, 802.3u
Standard ADSL: Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs),
ITU-T G.995.1
Standard ADSL2: ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis)
Standard ADSL2+: ITU-T G.992.5
Dimensioni ( L x P x A ): 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )
Tipo di antenna: Omni directional, Fixed
Guadagno antenna: 2x5dBi
CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11n, 802.11g, 802.11b
Frequenza: 2.400-2.4835GHz
Potenza di trasmissione: <20dBm(EIRP)
Sicurezza wireless: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering
CARATTERISTICHE SOFTWARE
QoS (Quality of Service): QoS Remarking based on IPP/ToS, DSCP and 802.1p
Sicurezza: NAT Firewall,
SPI Firewall,
MAC / IP / Packet / Application / URL Filtering,
Denial of Service(DoS),
SYN Flooding,
Ping of Death
Gestione: Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP v1/2c,
SNMP over EOC,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools
Port forwarding: Virtual Server, DMZ, ACL(Access Control List)
VPN pass-through: PPTP, L2TP, IPSec Pass-through
Protocolli ATM/PPP: ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Up to 8 PVCs
Caratteristiche avanzate: Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Mapping
VLAN, 802.1P,
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP
ALTRO
Certificazione: CE, FCC, RoHS
Contenuto della confezione: TD-W8961N
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter
Requisiti di sistema: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ &#65292;Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente: Operating Temperature: 0&#8451;~40&#8451; (32&#8457;~104&#8457;)
Storage Temperature: -40&#8451;~70&#8451; (-40&#8457;~158&#8457;)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
