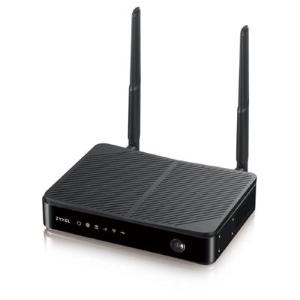

Wireless ROUTER LTE ZYXEL LTE-3301PLUS-EU0102F NebulaFlex SLOT SIM CARD 3G/LTE Cat6 DL fino a 300Mbps 4P LAN GbE AC1200

IP Networking
Cellular and Ethernet WAN failover and failback
Support IPv4/IPv6 dual stack
DHCP client/server
VPN pass through (PPTP/IPSec and L2TP pass-through)
Data roaming disable/enable
IP firewall
NAT/NAPT
Port forwarding/DMZ
DNS/DDNS
Supports router mode/bridge mode (IP pass through)
Primary WAN/secondary WAN management

WLAN Feature
Auto channel selection
WiFi Protected Setup (WPS)
WiFi Multimedia (WMM)
Security: none, WPA2-Personal
MAC address filtering with 32 address supported
Hide SSIDs
Up to of 32 WiFi clients
WLAN scheduling

Management
APN management
SIM PIN/PUK management
Secure remote management via TR-069/Web GUI
Network selection
Operating frequency band selection

LTE Air Interface
Standard compliant: 3GPP Release 10 Cat. 6
Support LTE band : 1/3/5/7/8/20/28/38/40/41
2 Carrier Aggregation combination:
B1+B1/B5/B8/B20/B28
B3+B3/B5/B7/B8/B20/B28
B7+B5/B7/B8/B20/B28
B38+B38; B40+B40; B41+B41
Peak data rate:
300 Mbps DL within 40 MHz bandwidth (CA)
50 Mbps UL within 20 MHz bandwidth

UMTS Air Interface
Standard compliant: WCDMA band 1/3/5/8
Supported frequency: HSPA+/UMTS 2100/1800/900/850 MHz (band 1/3/5/8)
WCDMA : 2100/1800/900/850 MHz
HSPA+ downlink data rate up to 42 Mbps
HSUPA uplink data rate up to 5.76 Mbps

WiFi Air Interface
Wireless standard (concurrent)
IEEE802.11 b/g/n, 2.4 GHz
IEEE802.11 a/n/ac, 5 GHz
WiFi 2.4 GHz antenna: 2x2 internal antennas up to 3 dBi
WiFi 5 GHz antenna: 2x2 internal antennas up to 5 dBi

Hardware Interface
4x GbE RJ-45 LAN ports. LAN1 can be configured as Ethernet WAN port
LEDs: Power indication, Internet status, LTE/3G signal strength, WiFi status, USB status
1x WPS & WiFi On/Off button
1x 3FF micro SIM card socket
1x Reset to default button
1x Power On/Off button
1x DC Power jack
1x USB 2.0 host port
2x external LTE/3G antenna SMA connector

Power Specification
External power supply: 110 - 240 V AC/12 V 1.5 A DC adaptor
Power consumption at peak: < 18 W

Physical Specifications
Item dimensions (WxDxH): 210 x 115 x 33 mm (8.27” x 6.06” x 1.57”)
Item weight: 500 g (1.10 lb)
Packing dimensions (WxDxH): 293 x 234 x 57 mm (11.53” x 9.21” x 2.24”)
Packing weight: 1050 g (2.31 lb.)

Environment Specifications
Operating Environment:
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: 10% to 90% (non-condensing)
Storage Environment:
- Temperature: -30°C to 70°C (-22°F to 158°F)
- Humidity: 5% to 95% (non-condensing)

Compliance & Certifications
CE: RED/ErP/Safety
WEEE
2011/65/EC (RoHS) Restriction of Hazardous Substances Directive
Hazardous Substance Free (HSF)
European Parliament and Council Directive 94/62/EC of 20 December 1994 on packaging and packaging waste

Package Contents
Power adapter (12 V/1.5 A EU/US/UK plug)
Ethernet cable
External antenna x2
Quick start guide
Warranty card
CE DoC
Safety warning
