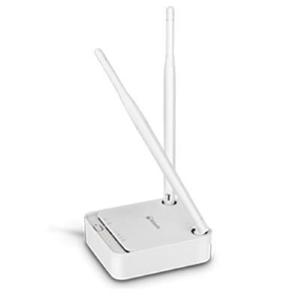

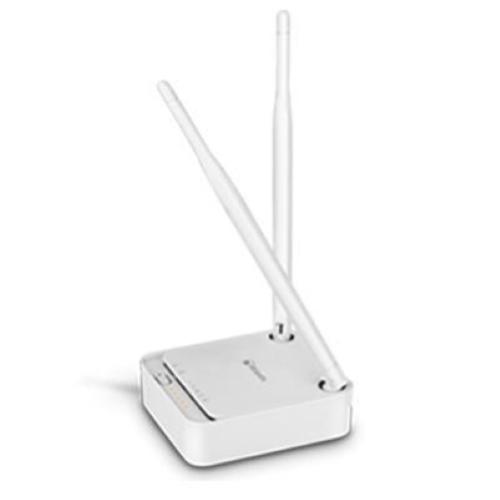

WIRELESS ROUTER BROADBAND ATLANTIS A02-RB-W301N 300M 802.11ngb 2P 10/100M 1P WAN - Extended Firewall -2 antenne 5dBi

Name
WebShare RB W301N

Product Code
A02-RB-W301N (V1.0)

Standard
IEEE 802.11b/g/n

Chipset
RaLink® MTK7620N

Interface
2 x Fast Ethernet (LAN) and 1 x Fast Ethernet (WAN)

LED
5 (2 x LAN, WAN, Wireless, PWR)

WPS/Reset
Yes (HW button) / Yes

Antenna
• 2 x 5dBi antennas

Firewall and Security
• MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ

Quality of Service
• Bandwidth Control based on IP/MAC

Multiple SSID
• Up to 3 SSID (each SSID uses different encryption key)
• Multiple SSIDs allow users to access different networks through a single access point

WDS
With WDS (Wireless Distribution System) mode, user can use wireless media to communicate two or more LANs through the AP with WDS mode, all of the LAN will be combined in the WDS group.
The WDS feature (up to 4 AP) makes the WebShare an ideal solution for quickly creating and extending a wireless local area network (WLAN) in offices or other workplaces, or even at hotspots.

Advanced Features
• DHCP Server
• System Log
• Dynamic DNS (DynDNS, TZO, NO-IP)
• Reboot Schedule, Wireless Schedule

Frequency Band
2.4~2.4835GHz

Radio Technology
• IEEE 802.11g/n: Orthogonal Frequency Division Multiplexing (OFDM)
• IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)

Modulations Scheme
DBPSK/DQPSK/CCK/OFDM

Media Access Protocol
CSMA/CA with ACK

Transmission Rate
Up to 300Mbps (auto-sense with auto fallback)

Security
64/128-bit WEP, WPA/WPA2 and WPA-Mixed

Transmitting Power
802.11b/g/n: up to 17 ± 1 dBm

Receiver Sensitivity
• 270M: -61 dBm@10% PER
• 135M: -65 dBm@10% PER
• 54M: -68 dBm@10% PER
• 11M: -85 dBm@8% PER
• 6M: -88 dBm@10% PER
• 1M: -90 dBm@8% PER

Number of Operational Channel
Europe (13)

Certifications
CE (Europe)

Dimensions (mm)
91x80x25 mm (without antennas)/91x80x205 mm (with antennas)

Temperature Range
• Operation: 0°C ~ 40°C
• Storage: ~ 40°C ~ 70°C

Humidity
10% ~ 90% (non Condensing)

System Requirements
• TCP/IP protocol must be installed on each PC
• Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator 6.0 or later

Package Contents
• WebShare RB WN Wireless N Broadband Router
• Power Adapter(AC-DC, 9V/0,5A)
• RJ45 CAT5 cable
• Multi-language Quick Start Guide
• 1 x Warranty Card and 1 x WEEE Card
