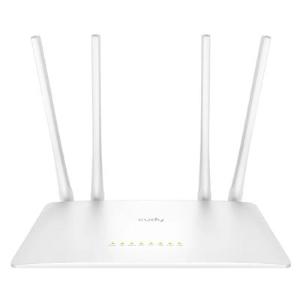

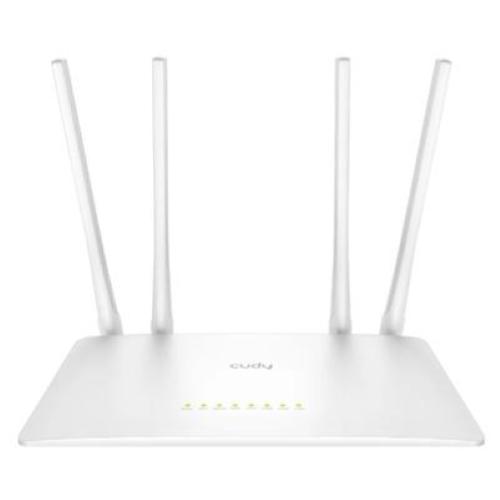

WIRELESS ROUTER AC1200 DUAL BAND CUDY WR1200 300MBPS X2.4GHZ-867MBPS X 5GHZ- 802.11AC/A/B/G/N -5P 10/100 4 ANT.FISSE

CPU
Chipset: MT7628
CPU Details: 580 MHz Single-Core, MIPS24KEC

Memory/Storage
Flash/ROM: 8 MB (64 Mbit) NOR
DDR/RAM: 64 MB (512 Mbit) DDR2

Wireless
5 GHz Wi-Fi Speed: 867 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
Beamforming: True
Range Performance:
- Max: 170 m (558 ft)
- Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
- One wooden walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 20 cm (7'')

Interfaces
10/100 Mbps RJ45 Ports: 5
Ethernet Notes: 1× WAN port, the rest are LAN ports
LED:
- Power
- Internet
- Speed/Link/ACT of Ethernet Port
- Wi-Fi
Physical Buttons:
- WPS Button
- Reset Button
Power Input: DC Jack

Power
Power Methods: DC
DC: 12V 1A
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC

Reliability
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing

Certifications
FCC, CE

Mechanical
Installation:
- Desktop
- Wall-mount
Dimension: 220×135×30 mm
Product Weight: 259 g (9.14 oz.)

Package Content
WR1200
Power Adapter
Ethernet Cable
Installation Guide
