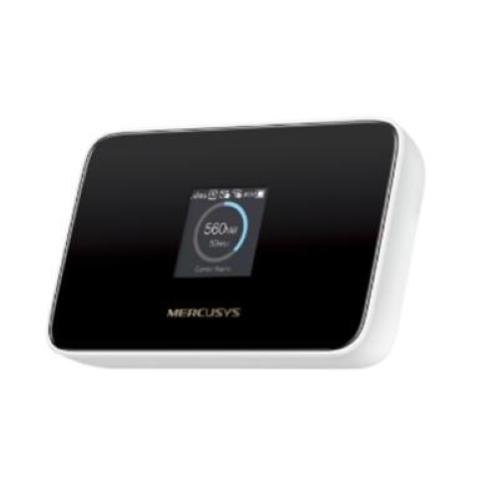

Wireless Router 4G LTE MERCUSYS MT115 150M 2,4 GHz 4G Cat4 150/50 Mbps LTE-FDD/LTE-TDD/HSPA+/UMTS, batt. ric.integrata 2400mAh

WIRELESS

Network Type
- Support 4G/3G network
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40 (2600/2300 ΜHz)
- HSPA+/UMTS: B1/B5/B8 (2100/850/900 ΜHz)

Wireless Standards
IEEE 802.11ax/b/g/n 2.4 GHz

Frequency
2.4 GHz

Reception Sensitivity
- 11b 11Mbps: -87.5dBm
- 11g 54Mbps: -74dBm
- 11n HT20 MCS7: -71dBm
- 11n HT40 MCS7: -69dBm

Transmission Power
<20dBm

Wireless Security
Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering, Enable/Disable SSID Broadcast

SOFTWARE

DHCP
Server, Client, DHCP Client List

HARDWARE

Dimensioni (W X D X H)
111.1 × 71.6 × 24.2 mm
(4.37 × 2.82 × 0.95 in)

Interfaces
- 1 USB-C port for power supply
- 1 Nano SIM card slot

Button
Power Button, Reset Button, Menu Button

External Power Supply
5V/1A

Tipologia di Antenna
Internal Antennas

Data Rates
- 4G LTE Speed: DL: 150 Mbps, UL: 50 Mbps
- WiFi Speed: 287 Mbps on 2.4 GHz

Screen Display
1.44 inch TFT

OTHERS

Network Services Enabled by Default
Web Server
- Manage and configure device through web
- Port: 80/443   Protocol: HTTP/HTTPS
DHCP/DHCPv6: IP address assignment
- Port: 67/547   Protocol: UDP
DNS
- Port: 53   Protocol: UDP
Dropbear: Manage and configure device through app
- Port: 20001   Protocol: SSH
App management: Manage and configure device through app
- Port: 20002   Protocol: TMP

Package Contents
- Mobile Wi-Fi MT115
- USB-C Cable
- Quick Installation Guide

Environment
- Operating Temperature: 0°C~35°C (32°F ~95°F)
- Storage Temperature: -10°C~40°C (14°F ~104°F)
- Operating Humidity: 0%~75% non-condensing
- Storage Humidity: 0%~65% non-condensing

System Requirements
Windows 11/10/8/7, Mac OS, Android, iOS, Windows Phone
