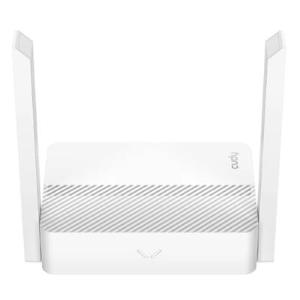

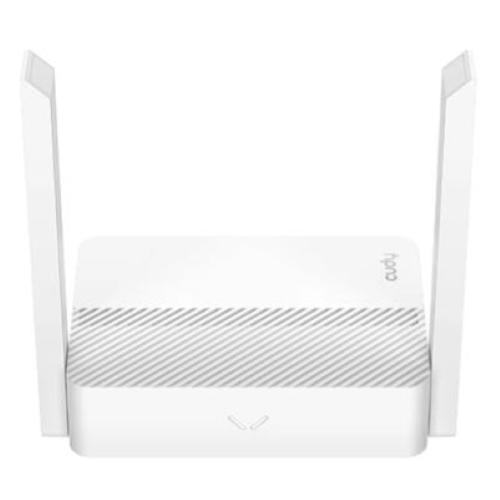

WIRELESS ROUTER 4G LTE CUDY LT300 CAT.4 300MBPS 802.11B/G/N 2P 10/100 RJ45 2 ANT.FISSE -NANO SIM SLOT

CPU
Chipset: MT7628
CPU Details: 580 MHZ Single-Core, MIPS24KEC

Memory/Storage
Flash/ROM: 8 MB (64 Mbit) NOR
DDR/RAM: 64 MB (512 Mbit) DDR2

Cellular
Cellular Standards: 4G Cat. 4
Cellular Antennas: 2× Fixed
SIM Options: 1× Nano SIM Slot
Available Versions: EU

EU Version Cellular
Max DL Speed: 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed: 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced: DL 2×2 MIMO
Cellular Bands:
- LTE-FDD: B1/3/5/7/8/20/28
- LTE-TDD: B38/40/41
- WCDMA: B1/5/8

Wireless
2.4 GHz Wi-Fi Speed: 300 Mbps
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Internal
2.4 GHz Antenna Gain Max: 2.83 dBi
Range Performance:
- Max: 100 m (328 ft)
- Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
- One wooden walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 10 cm (4'')

Interfaces
Physical Buttons:
- WPS Button
- Reset Button
10/100 Mbps RJ45 Ports: 2
Ethernet Notes: One port supports WAN/LAN configuration, and the rest are LAN ports
LED:
- System
- Cellular Signal Strength
Power Input: USB-C Port

Power
Power Methods: DC / PD
DC: 5V 1A
Max Power Consumption (W): 8W
Idle Power Consumption (W): 3W

Reliability
ESD Contact Protection: 4kV
ESD Air Protection: 8kV
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

Certifications
FCC, CE

Mechanical
Dimension: 118×80×27.5 mm
Product Weight: 172.2 g (6.07 oz.)
Installation: Desktop

Package Content
LT300
Power Adapter
Ethernet Cable
Installation Guide
