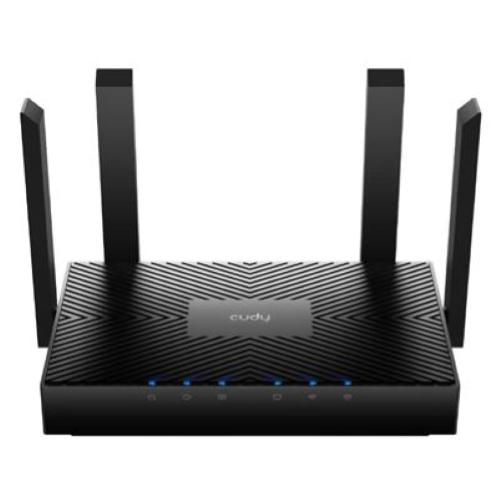

WIRELESS MESH ROUTER AX3000 WI-FI 6 CUDY WR3000 DUAL BAND 2402MBPS X 5GHZ-574MBPS X 2.4GHZ 802.11AX/AC/A/B/G/N 4P GBIT 4 ANT.

CPU
Chipset: MT7981
CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53

Memory/Storage
Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 256 MB (2 Gbit) DDR3

Wireless
5 GHz Wi-Fi Speed: 2402 Mbps
2.4 GHz Wi-Fi Speed: 574 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) with an Extra Stream
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Fixed
5 GHz Antenna Gain Max: 4.8dBi
2.4 GHz Antenna Gain Max: 3.4dBi
FEM or PA/LNA:
- 5 GHz: 3× External
- 2.4 GHz: 2× External
Beamforming: True
Range Performance:
- Max: 200 m (656 ft)
- Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance:
- Two wooden walls with thickness < 10 cm (4'')
- One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

Interfaces
Gigabit RJ45 Ports: 4
Ethernet Notes: 1× WAN port, the rest are LAN ports
LED:
- System
- Internet
- WAN
- LAN
- 2.4 GHz Wi-Fi
- 5 GHz Wi-Fi
Physical Buttons:
- WPS Button
- Reset Button
Power Input: DC Jack

Power
Power Methods: DC
DC: 12V 1A
Power Adapter:
- Input: 100 ~ 240 V, 50/60 Hz AC
- Output: 12V 1A DC
Max Power Consumption (W): 7.5W
Idle Power Consumption (W): 3.6W

Reliability
Environment:
- Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
- Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing

Certifications
FCC, CE

Mechanical
Installation:
- Desktop
- Wall-mount
Dimension: 183.3×109×35 mm
Product Weight: 295 g (10.41 oz.)

Package Content
WR3000
Power Adapter
Ethernet Cable
Installation Guide
