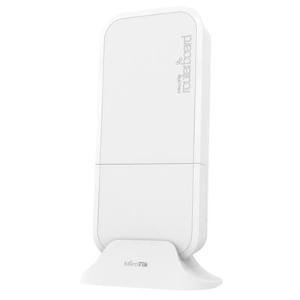

ROUTER LTE MIKROTIK RBWAPGR-5HACD2HND&R11E-LTE6 WAP AC LTE6 KIT BANDE 1,2,3,5,7,8,12,17,20,25,26,38,39,40,41N

Specifications
Product code: RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture: ARM 32bit
CPU: IPQ-4018
CPU core count: 4
CPU nominal frequency: 488-896 (auto) MHz
Switch chip model: IPQ-4018
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -30°C to 60°C
IPsec hardware acceleration: Yes

Powering
Number of DC inputs: 2 (PoE-IN, DC jack)
DC jack input Voltage: 10-57 V
Max power consumption: 16 W
Max power consumption without attachments: 10 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 18-57 V

Mobile
2G Category: Class12
2G bands: 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands: 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
TAC: 35666210

Wireless specifications
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: IPQ-4018
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 2.5
Wireless 5 GHz chip model: IPQ-4018
Wireless 5 GHz generation: Wi-Fi 5

Ethernet
10/100/1000 Ethernet ports: 2

Peripherals
Number of SIM slots: 1 Modem (Micro SIM)
MiniPCI-e slots: 1

Other
PCB temperature monitor: Yes
Voltage Monitor: Yes

Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: IP54
