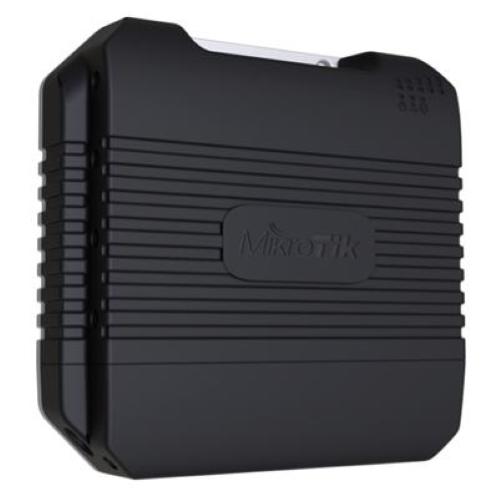

ROUTER LTE MIKROTIK LTAP-2HND&R11E-LTE6 LTAP LTE6 KIT

Specifications
Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -30°C to 70°C
IPsec hardware acceleration: Yes

Powering
Number of DC inputs: 3 (DC jack, Automotive, PoE-IN)
DC jack input Voltage: 12-30 V
Automotive input Voltage: 12-27 V
Max power consumption: 24 W
Max power consumption without attachments: 12 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 12-30 V

Mobile
2G Category: Class12
2G bands: 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands: 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands: 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)

Wireless specifications
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2.5
Wireless 2.4 GHz chip model: AR9382
Wireless 2.4 GHz generation: Wi-Fi 4

Ethernet
10/100/1000 Ethernet ports: 1

Peripherals
Number of SIM slots: 3 Modem (Mini SIM)
MiniPCI-e slots: 2
Serial console port: RS232
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1

Other
PCB temperature monitor: Yes
Voltage Monitor: Yes
GNSS standards: GPS

Certification & Approvals
Certification: CE, FCC, IC, E-MARK, EAC, ROHS
IP: IP54
