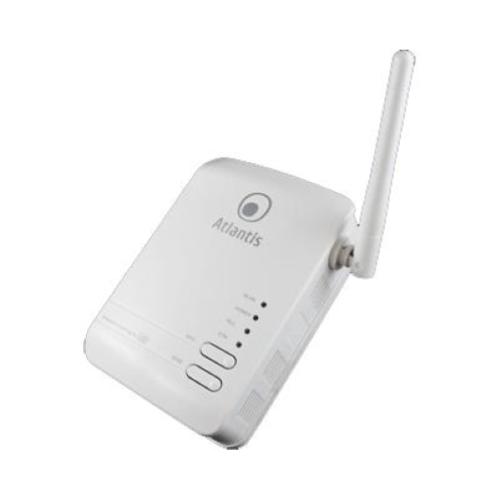

POWERLINE MULTIFUNZIONE 150M ATLANTIS A02-PL303-WN Homeplug AV Easy Setup Conf. 1pz -Garanzia 2 anni-

Standards
IEEE 802.11b/g/n
HomePlug AV

Chipset
Chipset (Wireless): RaLink® RT3052 (MIPS 24KEc 384MHz with 32KB I-cache/16KB D cache)
Chipset (PLC): Intellon INT6400® Integrated Single-chip Powerline Network Transceiver

Interface
1 x Fast Ethernet (LAN)

LED
4 (LAN, WLAN, Power, PLC)

WPS/Reset
Yes(Wireless and PowerLine)/Yes

Antenna
1 x 2 dBi fixed external Antennas

Virtual AP
• VLAN tagging (Ethernet)
• Client Isolation
• Multiple SSID Isolation

Multiple SSID
• Up to 4 SSID (each SSID uses different encryption key)
• Multiple SSIDs allow users to access different networks through a single access point (all, only LAN, only WAN)

WDS
With WDS (Wireless Distribution System) mode, user can use wireless media to communicate two or more LANs through the AP with WDS mode, all of the LAN will be combined in the WDS group. The WDS feature (up to 4 AP) makes the device an ideal solution for quickly creating and extending a wireless local area network (WLAN) in offices or other workplaces, or even at hotspots.

Advanced Features
• Wireless Client Mode (WDS Bridge Mode)
• DHCP Server
• WMM
• IGMP
• UPnP

Frequency Band
• 2412 ~ 2472MHz (Wireless)
• 2Mhz to 30Mhz band (PLC)

Radio Technology
• IEEE 802.11g/n: Orthogonal Frequency Division Multiplexing (OFDM)
• IEEE 802.11b: Direct Sequence Spread Spectrum (DSSS)

Modulations Scheme
• DBPSK/DQPSK/CCK/OFDM (Wireless)
• OFDM, 1155 carriers, 1024/256/64/16/8 QAM, QPSK, BPSK and ROBO (PLC)

Media Access Protocol
CSMA/CA with ACK

Transmission Rate
Up to 150Mbps (auto-sense with auto fallback)

Wireless Security
• 64/128-bit WEP, WPA-PSK, WPA2-PSK
• WPA, WPA2 with Radius
• MAC Access Control List
• WPS™

PowerLine Security
• 128-bit AES Encryption with key management for secure powerline communications (Utilise SYNC Button or Web GUI)
• Rotating NEK (Network Encryption Key) and NMK

Transmitting Power
• 802.11b/g/n: up to 16 ± 1 dBm

Receiver Sensitivity
• 802.11b (1Mbps): -90dBm @8% PER
• 802.11b (6Mbps): -88dBm @8% PER
• 802.11b (11Mbps): -85dBm @8% PER
• 802.11g (54Mbps): -68dBm @10% PER
• 802.11n (150Mbps): -68dBm @10% PER

Number of Operational Channel
Europe (13)

Range Coverage
• Indoor: up to 120 meters (Wireless)
• Outdoor: up to 350 meters (Wireless)
• Up to 200 meters (PLC)

Certifications
CE (Europe)

Dimensions (mm)/ Weight
110mm x 80mm x 35mm (without Antenna and plug) / 220g

Temperature Range
• Operation: 0°C ~ 32°C
• Storage: -10°C ~ 60°C

Humidity
10% ~ 75% (non Condensing)

System Requirements
• TCP/IP protocol must be installed on each PC
• Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator 6.0 or later

Package Contents
• One NetPower 303 WN
• 1 x RJ45 CAT5 Cable
• Quick Start Guide (English and Italian)
• CD-Rom with QSG and Manual (English and Italian)
• 1 x Warranty Card and 1 x WEEE Card
