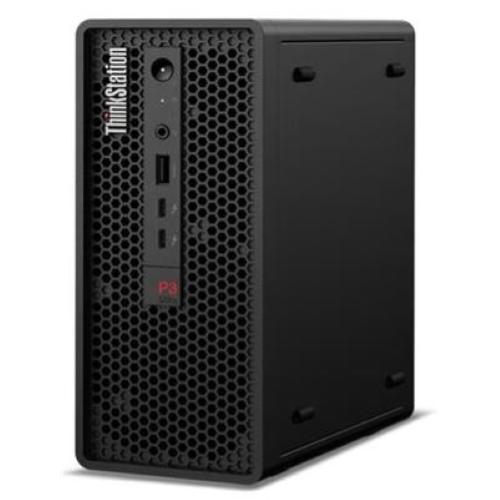

WKS LENOVO ThinkStation P3 Ultra SFF 30HA004TIX 4lt i7-14700 2x16DDR4 1TBSSD W11Pro 3YOS VGA/RTXA2000-12GB T+Musb 5US Fino:01/08

PERFORMANCE
Processor: Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
AI PC Category: AI-Ready Workstations
Processor Sockets: 1x FCLGA1700
Integrated Graphics: Integrated Intel® UHD Graphics 770
Discrete Graphics: 1x NVIDIA® RTX A2000 12GB
Chipset: Intel® W680 Chipset
Memory: 2x 16GB SO-DIMM DDR5-4800 Non-ECC
Memory Slots: 4x DDR5 SO-DIMM slots, dual-channel capable
Max Memory: Up to 192GB (4x 48GB DDR5 SO-DIMM)
PCIe NVMe Controller: Integrated NVMe® controller
PCIe NVMe Drive: 1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal
SATA Controller: Integrated SATA controller
SATA/SAS Drive: No
Audio Chip: High Definition (HD) Audio, Realtek® ALC897-Q codec
Power Supply: 230W 90% Adapter

DESIGN
Keyboard: USB Traditional Keyboard, Black, Italian
Mouse: USB Calliope Mouse, Black
Expansion Slots: 2x PCIe® slots with 1x PCIe 4.0 x16 and 1x PCIe 3.0 x8.
- Slot 1: PCIe 4.0 x16 (via MXM to PCIe riser card), low profile, 75W, double-width
- Slot 2: PCIe 3.0 x8 (x4 lanes), low profile, 25W
Dust Filter: No
Dimensions (WxDxH): 87 x 223 x 202 mm
Weight: 3.6 kg

CONNECTIVITY
Onboard Ethernet: Intel® I225-LM + I210-AT, 2x RJ-45, 2.5GbE + GbE
Optional Ethernet: No
WLAN + Bluetooth: Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + Bluetooth 5.1, vPro®
Front Ports:
- 2x Thunderbolt™ 4
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
Rear Ports:
- 4x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 3x DisplayPort™ 1.2
- 1x Ethernet (2.5GbE RJ-45)
- 1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured):
- 4x miniDP 1.4a on NVIDIA® RTX A2000 12GB

SECURITY & PRIVACY
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks: Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch: Chassis Intrusion Switch

MANAGEABILITY
System Management: Intel® vPro® Enterprise with Intel AMT 16

CERTIFICATIONS
ISV Certifications: Please visit ISV certifications for Lenovo® Workstations
Mil-Spec Test: MIL-STD-810H military test passed

SOFTWARE
Operating System: Windows® 11 Pro
Bundled Software: No
