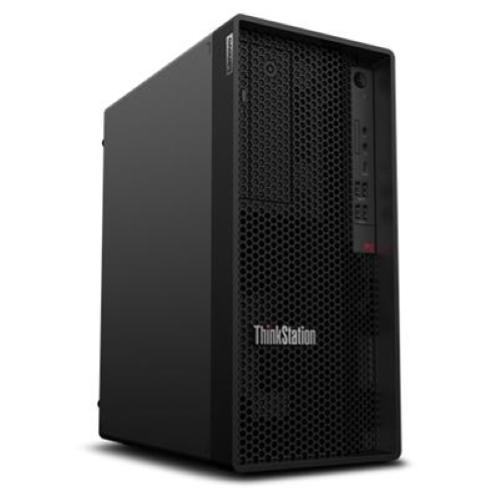

WKS LENOVO ThinkStation P2 TWR 30FR001VIX 20lt i7-14700 16DDR5 1TBSSD W11Pro 3YOS T+M 9USB HDMI 2xDP RJ45 TPM Fino:30/05

PERFORMANCE
Processor: Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
Processor Sockets: 1x FCLGA1700
Integrated Graphics: Integrated Intel® UHD Graphics 770
Discrete Graphics: No
Chipset: Intel® W680 Chipset
Memory: 1x 16GB UDIMM DDR5-4400 Non-ECC
Memory Slots: 4x DDR5 UDIMM slots, dual-channel capable
Max Memory: Fino a 128GB (4x 32GB DDR5 UDIMM)
PCIe NVMe Controller: Integrated NVMe® Controller
PCIe NVMe Drive: 1x 1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal
SATA Controller: Onboard Intel® RSTe SATA RAID
SATA/SAS Drive: No
Storage Support: Up to 2x 3.5'' SATA HDD; also supports up to 3x M.2 SSD (2x by onboard, 1x by M.2 to PCIe® adapter)
• 3.5'' HDD up to 4TB each
• Onboard M.2 SSD up to 4TB each
• M.2 SSD by M.2 to PCIe adapter up to 2TB
Optical: No
Audio Chip: High Definition (HD) Audio, Realtek® ALC897Q-CG codec
Power Supply: 750W Platinum Fixed

SOFTWARE
Operating System: Windows® 11 Pro

DESIGN
Keyboard: USB Calliope Keyboard, Black, Italian
Mouse: USB Calliope Mouse, Black
Expansion Slots: Supports 4x PCIe® slots with 2x PCIe 4.0 x16 and 2x PCIe 3.0 x1
• Slot 1: PCIe 4.0 x16, full height, full length, 75W, double-width
• Slot 2: PCIe 3.0 x1, full height, half length, 25W
• Slot 3: PCIe 4.0 x16 (x4 lanes), full height, half length, 25W
• Slot 4: PCIe 3.0 x1, full height, half length, 25W
M.2 Slots: Up to 3x M.2 SSD:
• 2 via onboard slots, PCIe® 4.0 x4
• 1 via Single M.2 to PCIe adapter, PCIe 3.0 x4
- 1x M.2 slot (for WLAN)
Bays: 3x internal disk bays, up to 2x 3.5'' bays plus 1x 2.5'' bay:
• Bay 1 supports 1x 3.5'' HDD, standard; or 1x 2.5'' HDD / SSD, optional
• Bay 2 supports 1x  3.5'' HDD or 2.5'' HDD / SSD, optional
• Bay 3 supports 1x 2.5'' HDD / SSD, optional
• Front Access HDD Bay supports 1x 3.5'' HDD or 2.5'' HDD / SSD, optional, occupies Bay 2 location
Dimensions (WxDxH): 170 x 315.35 x 376 mm
Weight: 9.67 kg

CONNECTIVITY
Onboard Ethernet: Intel® I219-LM, 1x GbE RJ-45
Optional Ethernet: No
WLAN + Bluetooth: No
Card Reader: SD Card Reader
Front Ports:
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
Rear Ports:
- 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 2x DisplayPort™ 1.4
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
Optional Rear Ports (configured): No

SECURITY & PRIVACY
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks:
- Kensington® Security Slot™, 3 x 7 mm
- Padlock Loop
Cover Lock: No
Cable Lock: No Cable
Chassis Intrusion Switch: No

MANAGEABILITY
System Management: Intel® vPro® Enterprise with Intel AMT 16

SERVICE
Green Certifications:
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 3
- RoHS compliant
- TCO Certified 9.0
