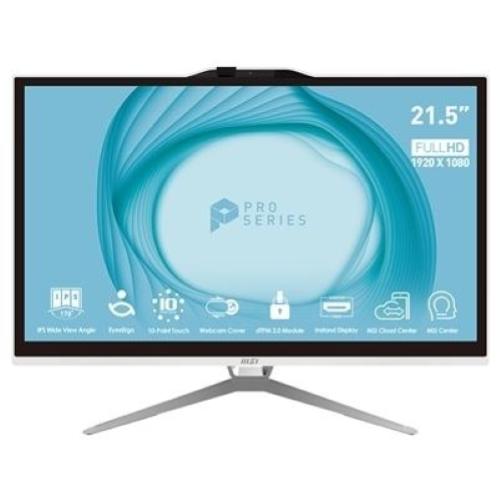

LCDPC Touch MSI PRO AP222T 13M-284IT 21.5"IPS FHD AG MM White G7400 4GBDDR4 SSD128GB W11Pro 2LAN WiFi BT6USB HDMI CR COM TPM

Product Name
PRO AP222T 13M-007EU

System OS
Windows 11 Pro

Processor
Type: Intel® Pentium Gold G7400
CPU Frequency / Cache Size: 3.70 GHz 6M Cache
CPU Cores (P+E Core)/ Threads / CPU TDP: 2 (2+0) / 4 / 46W

Chipset
Intel® H610 series

Touch Panel
Projected Capacitive Touch Screen (10-point)

Monitor
Size: 476.064(H) ×267.786(V), 21.5“ IPS Grade
Resolution: 1920 x 1080 FHD
Glare/ Non-Glare: Glare
Display: LED Back-light
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Color: 16.7 M
Response: 14 ms
Pixel Pitch: 0.24795(H) x 0.24795(V) mm
Viewing Angle: 178° Horizontal, 178° Vertical

VGA
Graphic: Intel® UHD Graphics
VRAM: Integrated

Memory
Type: DDR4 1x 4GB SO-DIMM 3200 MHz
Slot libero: DDR4 1x free SO-DIMM slot
Maximum: Expandable to 64GB

Storage
Total number of storage: 1x 2.5“ SSD/HDD, 1x128GB M.2 SSD (PCIE/SATA auto-switch)
Optical drive: No

Audio
Internal Microphone: Yes
Audio Chipset: Realtek ALC897
Speaker: 2x 2W

Audio Jack
1x Mic-in/Headphone-out combo

Communication
Wireless LAN: Intel Wi-Fi AC 9462
LAN (RJ45): 2x RJ45 LAN (Realtek RTL8111H)
Bluetooth: 5.1 (with AC 9462)

I/O
USB (front/ side / rear quantity): 6 (0 / 1x USB 3.2 Gen 1 Type C, 1x USB 3.2 Gen 1 Type A/ 2x USB 3.2 Gen 2 Type A, 2x USB 2.0)
Card Reader: 1
HDMI-in / HDMI-out: 1/1
COM Port: 1
1x 5-Way Navigator OSD Control Button

Expansion
M.2 2230 ( for WiFi)

Adjustment
-5° ~ 15° (Tilt)

Webcam
Built-in HD Webcam

Mechanical and Environmental
Operating, Storage Temperature: 0 - 35°C, -20 – 60° C
Operating, Storage Humidity: 0% ~ 85%, 0% ~ 90%
Regulatory Compliance: EMC compliance: FCC(Class B), VCCI, BSMI, RCM(C-Tick), Safety compliance: UL(CUL), CB/CE

Noise
Idle: 27 db / Full load: 34 db

Lock
Kensington Lock slot

Wake-on-LAN
Yes

Wall Mount
VESA standard (STD 100x100mm) (Optional)

Power
AC Adaptor 120W

Dimensions
Dimension (W x D x H): 499.25 x 372.96 x 209.37 mm
Weight Net / Gross Weight: 5.9 kg / 8.95 kg

Accessories
Webcam cover included
