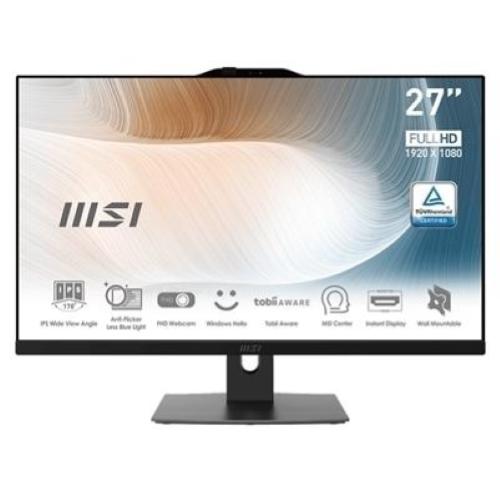

LCDPC MSI MODERN AM272P 12M-458IT 27"IPS FHD AG MM Black i5-1235U 8GBDDR4 SSD512GB W11Pro LAN WiFi BT HDMI 6USB TPM V Fino:31/12

Product Name
Modern AM272P 12M-458IT

System OS
Windows 11 Pro

Processor
Type: Intel® Core i5-1240P
CPU Frequency: 1.7GHz up to 4.4GHz
Cache Size: 12M Cache
CPU Cores: 12
CPU Threads: 16
CPU TDP: 28 Watt

Chipset
Intel® SoC

Monitor
Size: 27“ 597.888(H) × 336.312(V)
Resolution: 1920 x 1080 FHD
Glare/ Non-Glare: Anti-Glare
Display: LED Back-light
Brightness: 300cd/m2
Contrast Ratio: 1000:1
Color: 16.7 M
Response: 14 ms
Pixel Pitch: 0.2745 mm x 0.2745 mm
Viewing Angle: 178° Horizontal, 178° Vertical

VGA
Graphic: Intel® Iris® Xe Graphics
VRAM: Integrated

Memory
Type: DDR4 2666/ 3200 MHz
Configuration: DDR4 1 x 8gb SO-DIMM slots, DDR4 1 x free SO-DIMM slots
Maximum: Expandable to 64GB

Storage
Total number of storage: 1x 2.5“ SSD/HDD, 1x512gb M.2 SSD (PCIE/SATA auto-switch)
Optical drive: No

Audio
Internal Microphone: No
Audio Chipset: Realtek ALC256
Speaker: 2x 2.5W

Audio Jack
1x Mic-in/Headphone-out combo

Communication
Wireless LAN: Wi-Fi 6 AX201 / WiFi 6 AX201 / Wireless AC 3168
LAN (RJ45): 1x RJ45
Bluetooth: 5.2 (with AX210 & AX201) / 4.2 (with AC 3168)

I/O
USB (front/ side / rear quantity): 6 (0 / 2x USB 3.2 Gen 2 Type C, 2x USB 3.2 Gen 2 Type A / 2x USB 2.0 Type A)
HDMI-in / HDMI-out: 1 / 1 (2.0)

Expansion
M.2 2230 (for WiFi)

Adjustment (Tilt)
-4° ~ 20° (Tilt) ; 0 ~ 130mm (Height)

Webcam
Built-in FHD Webcam which supports Windows Hello
Removable webcam cover design

Mechanical and Environmental
Operating, Storage Temperature: 0 - 35°C, -20 – 60° C
Operating, Storage Humidity: 0% ~ 85%, 0% ~ 90%
Regulatory Compliance: EMC compliance: FCC (Class B), CE, VCCI, BSMI, RCM (C-Tick), Safety compliance: UL (CUL), CB/CE

Noise
Idle: 27 db / Full load: 34 db

Lock
Kensington Lock

Wake-on-LAN
Yes

Wall Mount
Support Standard VESA Mount (75x75mm)

Power
AC Adaptor 120W

Dimensions
Dimension (W x D x H): 611.75 x 194.68 x 561.48 mm
Weight Net / Gross Weight: 7.62 kg / 10.65 kg

Accessories
Webcam cover included
