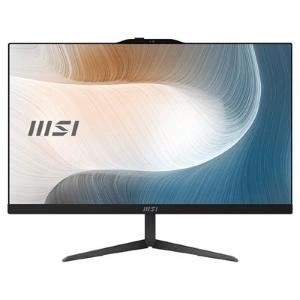

LCDPC MSI MODERN AM242 12M-663IT 23.8"IPS FHD AG MM Black i7-1260P 16GBDDR4 SSD512GB W11Pro 2LAN WiFi BT HDMI 6USB TPM VESA

Product Name
Modern AM242 12M-663IT

System OS
Windows 11 Pro

Processor
Type: Intel® Core i7-1260P
CPU Frequency: 2.1 GHz
CPU Cores: 12

Chipset
Intel® SoC

Monitor
Size: 527.04 mm (H) x 296.46 mm (V), 23.8 “
Resolution: 1920 x 1080 FHD
Glare/ Non-Glare: Anti-Glare
Display: LED Back-light
Brightness: 250cd/m2
Contrast Ratio: 1000:1
Color: 16.7 M
Response: 14 ms
Pixel Pitch: 0.2745 mm x 0.2745 mm
Viewing Angle: 178° Horizontal, 178° Vertical

VGA
Graphic: Intel® Iris® Xe Graphics
VRAM: Integrated

Memory
Type: DDR4 2666/ 3200 MHz
Configuration: DDR4 2 x 8gb SO-DIMM slots
Maximum: Expandable to 64GB

Storage
Total number of storage: 1x512gb 2.5'' SSD/HDD, 1x N.2 SSD (PCIE/SATA auto-switch)
Optical drive: No

Audio
Internal Microphone: No
Audio Chipset: Realtek ALC256
Speaker: 2x 2.5W

Audio Jack
1x Mic-in/Headphone-out combo

Communication
Wireless LAN: Intel Wi-Fi 6E AX211 / Wi-Fi 6 AX201 / Wireless AC 3168 (either one)
LAN (RJ45): 1x RJ45
Bluetooth: 5.3 (with AX211) / 5.2 (with AX201) / 4.2 (with AC 3168)

I/O
USB (front/ side / rear quantity): 6 (0 / 2x USB 3.2 Gen 2 Type C, 2x USB 3.2 Gen 2 Type A / 2x USB 2.0 Type A)
HDMI-in / HDMI-out: 1 / 1 (2.0)

Expansion
M.2 2230 ( for WiFi)

Adjustment (Tilt)
-5° ~ 15° (Tilt)

Webcam
Built-in FHD Webcam which supports Windows Hello
Removable webcam cover design

Mechanical and Environmental
Operating, Storage Temperature: 0 - 35°C, -20 – 60° C
Operating, Storage Humidity: 0% ~ 85%, 0% ~ 90%
Regulatory Compliance: EMC compliance: FCC (Class B), CE, VCCI, BSMI, RCM (C-Tick), Safety compliance: UL (CUL), CB/CE

Noise
Idle: 23.8 db / Full load: 32.5 db

Lock
Kensington Lock

Wake-on-LAN
Yes

Wall Mount
Support Standard VESA Mount (75x75mm)

Power
AC Adaptor 120W

Dimensions
Dimension (W x D x H): 541.40 x 175.09 x 406.86 mm
Dimension with carton (W x D x H): 652 x 222 x 495 mm
Weight Net / Gross Weight: 4.65 kg / 7.35 kg

Accessories
Webcam cover included
