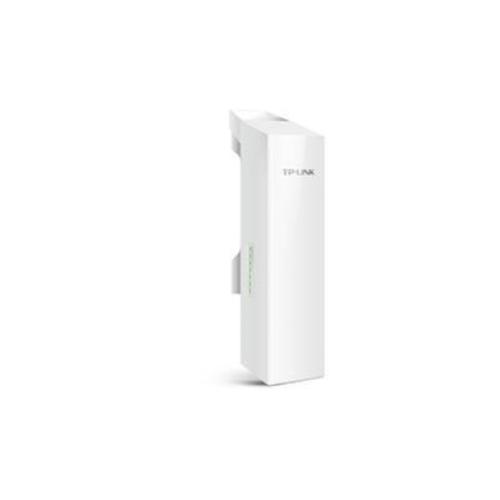

WIRELESS 300M ACCESSPOINT OUTDOOR TP-LINK CPE510 5GHz - PoE-Ant.integrate MIMO 2x2 a doppia polarizzaz. 13dBi -GARANZIA 3 ANNI-

CARATTERISTICHE HARDWARE
Processore: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memoria: 64MB DDR2 RAM, 8MB Flash
Interfaccia:
- 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
- 1 Grounding Terminal
- 1 Reset Button
Alimentazione:
- Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
Consumo energetico: 9.8 Watts Max
Dimensioni ( L x P x A ): 224 x 79 x 60 mm
Tipo di antenna:
- Built-in 13dBi 2x2 Dual-polarized Directional Antenna
- Beam Width: 45° (H-Plane) / 30° (E-Plane)
Sicurezza:
- 15KV ESD Protection
- 6KV Lightning Protection
Enclosure:
- Outdoor ASA stabilized plastic material
- IP65 waterproof Certification

CARATTERISTICHE WIRELESS
Standard wireless: IEEE 802.11a/n (with Pharos MAXtream disabled)
Protocollo proprietario: TDMA Mode (with Pharos MAXtream enabled)
Velocità wireless:
- Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz,Dynamic)
Frequenza: 5.15~5.85GHz
Potenza di trasmissione: 26dBm/398mw (Adjustable power by 1dBm)

CARATTERISTICHE SOFTWARE
Configurazioni wireless:
- Pharos MAXtream TDMA Technology
- 802.11a/n Modes
- Selectable Channel Width: 5/10/20/40MHz
- Automatic Channel Selection
- Transmission Power Control
- Dynamic Frequency Selection (DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging (AP mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Gestione:
- Discovery and Remote Management via Pharos Control application
- HTTP/HTTPS Web-based management
- System Log
- SNMP Agent(v2c)
- Ping Watch Dog
- Dynamic DDNS
- SSH Server
Tool di sistema:
- Wireless Signal Quality Indicators:
- Signal Strength/Noise/Transmit CCQ/CPU/Memory
- Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
- Spectrum Analyzer
- Speed Test
- Ping
- Traceroute
Ottimizzazioni di sistema:
- Optimized IGMP Snooping/Proxy for multicast applications
- Hardware watch dog

CARATTERISTICHE ADATTATORE POE
Dimensioni ( L x P x A ): 85.8×43.9×29.7 mm
Interfacce:
- 1 AC Jack with Earth Ground
- 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
- 1 10/100/1000Mbps Shielded Ethernet Port (Data)
Tasto: Remote Reset Button
Indicatori di carica LED: Green
Input: 100-240VAC, 50/60Hz
Output:
- 24VDC, 1.0A Max
- +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficienza: >80%
Certificazioni: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

ALTRO
Certificazione: CE, FCC, RoHS, IPX5
Contenuto della confezione:
- Outdoor Wireless CPE
- 24V 1A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
Requisiti di sistema:
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Ambiente:
- Operating Temperature: -30°C~70°C (-22℉~158℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~95% non-condensing
