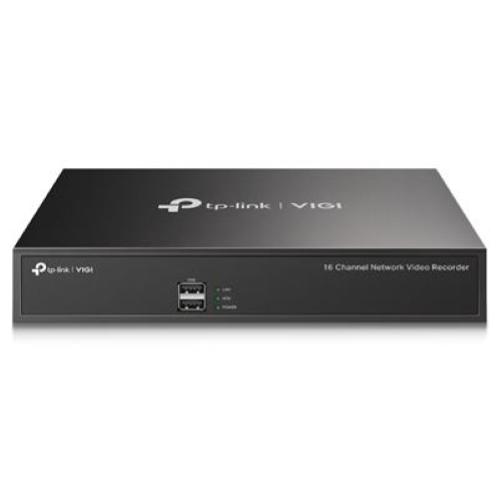

NVR IP TP-LINK VIGI VIGI NVR1016H 16canali -risol. fino 8MP -1 interf.SATA-1P 100Mbps 2P USB2.0+1P VGA +1 HDMI -12V CC 1.5A

VIDEO & AUDIO
IP Video Input: 16-Channel
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode: HDMI/VGA Simultaneous Output
Multi-View Display: 1/4/6/8/9/16

DECODIFICA
Audio Compression: G.711A/G.711U/G.726
Decoding Format: H.265+/H.265/ H.264+/H.264
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution: 8 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-Channel
Capability: 1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP

GESTIONE
Record Mode:
- Manual Recording
- Scheduling Recording
- Motion Detection Recording
Playback Mode:
- Instant Playback
- Regular Playback
- Tag Playback
- Event Playback
Backup Mode:
- Regular Backup
- Video Clip Backup
Playback Function:
- Play
- Pause
- Stop
- Fast Forward
- Fast Backward
- Play By Frame
- Full Screen
- Video Clip
- Export Clip
- Digital Zoom
- Lock Recording
- Audio On/Off

RETE
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access: Android, iOS
Incoming Bandwith: 80 Mbps
Outgoing Bandwidth: 60 Mbps
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF, CGI

INTERFACCIA
Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2× USB 2.0
Audio Interface: 1, Audio In; 1, Audio Out
Alarm In/Out: N/A
Serial Interface: N/A
Power: 1× DC Jack
Reset Button: 1
Speaker: N/A
eSATA: N/A
HDMI: 1
VGA: 1

HARD DISK
SATA: 1 SATA Interface
Capacity: Up to 10 TB

NOTIFICHE
General Alarm:
- Motion Detection
- Video Tampering
- Line-Crossing Detection
- Intrusion Detection
- Region Entering Detection
- Region Exiting Detection
- Object Abandoned/Removal Detection
- Vehicle Detection
- Human Detection
- Smart Frame
Anomaly Alarm:
- Video Loss
- Offline and IP Conflict
- Disk Exception
- Login Exception
Alarm Linkage:
- Recording
- White Light Alarm
- Buzzer
- Log
- Audible Alarm

INTERFACCE
Interfaccia di rete: 1× RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2× USB 2.0

GENERALE
Operating Temperature: -10–55 °C
Storage Temperature: -40–70 °C
Storage Humidity: 10%~90% RH Non-Condensing
Weight: 578.5 g
Contenuto della confezione:
- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Quick Installation Guide
Working Temperature:
- NVR: -10–55 °C
- Power Adapter: 0–40 °C
Working Humidity: 10%~90% RH Non-Condensing
Dimensioni ( L x P x A ): 246.2 × 148.2 × 45 mm
Alimentazione esterna: DC 12V/1.5A
Net Weight: 0.61 Kg
Gross Weight: 1.12 Kg
Power Consumption: 4.25 W (without disk)
Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCC

VIDEO/IMMAGINE
Synchronous Playback: 16-Channel
Video Input: 16-Channel IP Video Input, up to 8 MP Resolution
Video Output:
- Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI/VGA
- Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution: 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
